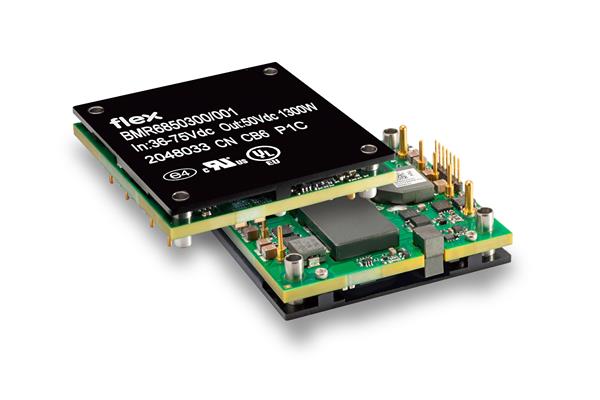

Flex Power Modules BMR6853300/001 Isolated

Width: 57.9 mm (2.28 in)

Height: 12.7 mm (0.5 in)

Length: 61 mm (2.402 in)

Industry: Industrial

Output Power: 1.3 kW

Mounting Style: Through Hole

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 36 V

Output Current-Channel 1: 26 A

Output Voltage-Channel 1: 50 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
