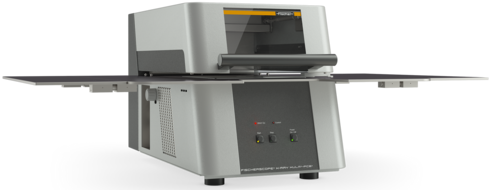

FISCHER FISCHERSCOPE X-RAY XULM-PCB Coating Thickness Meter

Robust entry-level instrument for simple measurements of components and structures on printed circuit boards

Measuring distance 0 … 27,5 mm

Smallest measurement spot: approx. Ø 0.2 mm

Microfocus tube with tungsten anode

Fixed aperture

Fixed filter

Fixed sample support

Max. sample size 610 x 610 mm (24 x 24 in) with extension

Max. sample weight 5 kg (11 lb)

Max. sample height 90 mm (3.5 in)

Proportional counter tube detector for short measuring times and small measuring spot

Fully protected instrument with type approval according to current radiation protection legislation
