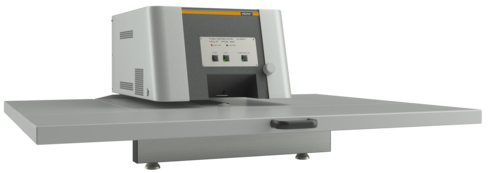

FISCHER FISCHERSCOPE X-RAY XDLM PCB 200 Coating Thickness Meter

Universal entry-level instrument for simple measurements of components and small structures on printed circuit boards

Measuring direction with measuring top down

Microfocus tube with tungsten anode

Smallest measuring spot Ø approx. 0.2 mm

Fixed or 1-fold changeable apertures

Fixed filter

Maximum sample height: 5 mm

Maximum sample weight: 5kg

Proportional counter tube detector for short measuring times and small measuring spot

Various measuring table options: manual pull-out,optional with measuring table extension or programmable, for PCBs up to 610 × 610 mm

Applications

Electroplated, galvanized coatings such as zinc on iron as corrosion protection

Serial testing of mass-produced parts

Analysis of the composition of special steels, e.g. detection of molybdenum in A4

Decorative chrome coatings, e.g. Cr/Ni/Cu/ABS

All typical chrome coatings – also new ones such as CrVI

Measurement of functional gold coatings on printed circuit boards such as Au/Ni/Cu/PCB or Sn/Cu/PCB

Coatings on connectors and contacts in the electronics industry such as Au/Ni/Cu and Sn/Ni/Cu
