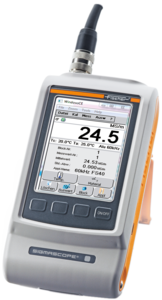

FISCHER SIGMASCOPE SMP350 Measuring the Electrical Conductivity of Nonferrous Metals (0,5-65MS/m or 1- 12%IACS)

Applications

• Conductivity testing on raw materials for sorting and quality assurance

• Inspection of alloys in coinage (e.g. conductivity of Euro coins)

• Assessment of the hardness and strength of heat-treated materials

• Checking for heat damage, material fatigue and cracks

• Estimation of the phosphorous content in copper alloys or copper-bearing materials

• Tracking of precipitation processes, e.g. in Cu-Cr alloys

• Verification of the homogeneity of alloys

• Scrap sorting

Features

• Measurements pursuant to ASTM E 1004 and DIN EN 2004-1

• SMP350 with probe FS40 fulfills Boeing specification BAC 5651

• Measurement frequencies ranging from 15 kHz to 2 MHz, depending on the probe

• Measurement range: 0.5 – 65 MS/m or 1 – 112% IACS

• Measurement precision at ambient temperature: ±0.5% of reading

• Operating temperature: 0 – 40 °C

• Lift-off compensation to 500 μm

• Smallest diameter measurement area without noticeable influence on the reading: 13 mm

• Connector for electrical conductivity probe, with or without integrated temperature sensor

• Connector for optional temperature sensor TF100A

• USB communication and printer port

• Power supply via battery or mains electricity

• Included in the shipment: Carrying case, power supply, battery set, carrying strap and protective cover for the instrument, Cu reference standard, USB cable
