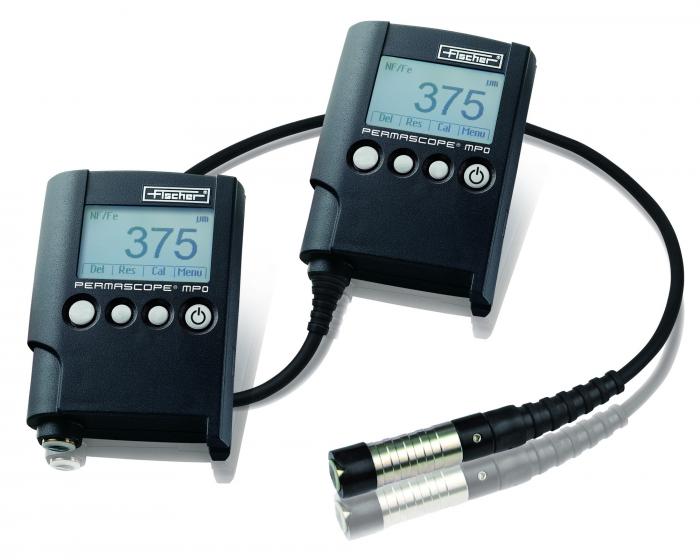

FISCHER PERMASCOPE MP0-FP Paint Thickness Gauge (0–2500μm; Iso/Fe + NF/Fe)

• Measurement: Iso/Fe + NF/Fe

• Internal data storage for 1000 readings

• Measurement range in µm: 0-2500

• Weight: 184 g

• Measuring speed: over 70 measurements/minute

• FP models with connected cable probe for easy measurement in hard-to-reach places

Delivery contents

All devices of the MP0 and MP0R series come in a robust carrying case. Besides the measurement instrument, the shipment includes:

• 2 Batteries, LR6.AA 1.5 V

• Impact protection and Carrying strap

• Operation manual

• USB cable for devices with USB interface

• Material calibration standards corresponding to the respective measurement methods

• Calibration foils

Compact handheld gauge with built-in cabled probe for coating thickness measurement with magnetic induction. For measuring non-ferrous metallic and non-conductive coatings on steel or iron (NF/Fe and Iso/Fe).

Areas of application

• Precise coating thickness measurements of thin layers on steel and iron:like zinc, chrome, copper, paint, lacquer, or plastic coatings on steel, iron or cast iron

• Coating thickness measurements on both smooth and rough surfaces
