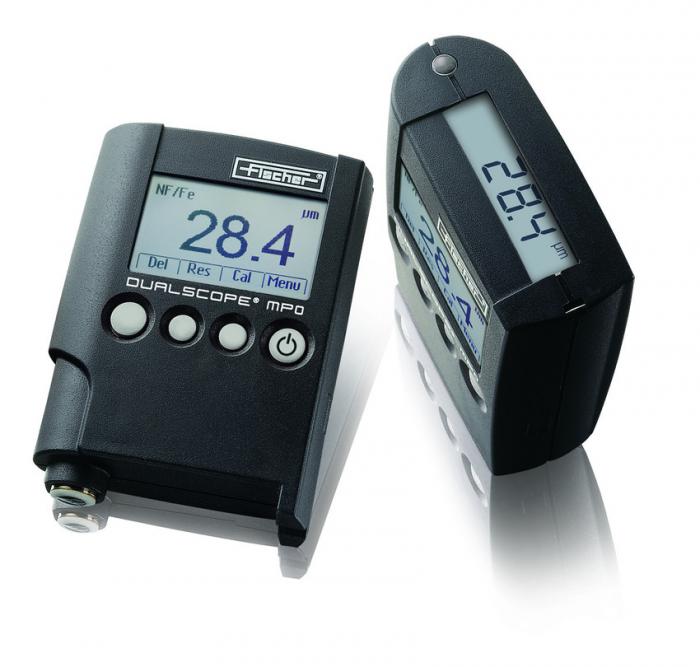

FISCHER DUALSCOPE MP0 Paint Thickness Gauge (0–2000μm; Iso/Fe + NF/Fe + Iso/NF)

• Measurement: Iso/Fe + NF/Fe+ Iso/NF

• Internal data storage for 1000 readings

• Measurement range in µm: 0-2000

• Weight: 137 g

• Measuring speed: over 70 measurements/minute

Delivery contents

All devices of the MP0 and MP0R series come in a robust carrying case. Besides the measurement instrument, the shipment includes:

• 2 Batteries, LR6.AA 1.5 V

• Impact protection and Carrying strap

• Operation manual

• USB cable for devices with USB interface

• Material calibration standards corresponding to the respective measurement methods

• Calibration foils

Handheld instrument with integrated probe for coating thickness measuremnt on virtually all metalic substrates. The measuring system automatically recognises the substrate material and selects the appropiate measurement method (magnetic induction or eddy current).

Areas of application

-Coating thickness measurements on steel and non-ferrous metals like zinc, chrome, copper, paint, lacquer, or plastic coatings on steel, iron or cast iron

- Coatings of paint, lacquer or plastic on aluminum, copper or brass

- Anodized coatings on aluminum

- Suitable for both smooth and rough surfaces
