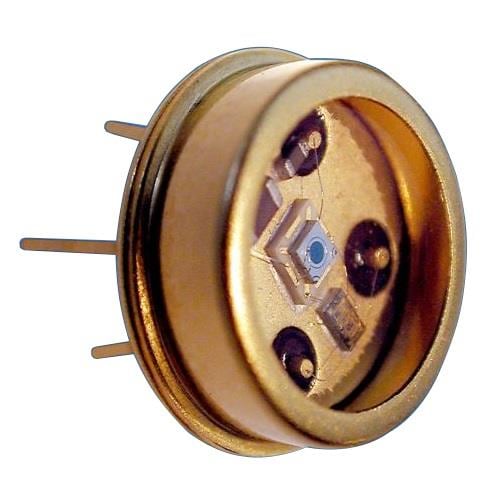

First Sensor - TE Connectivity 5000002 Avalanche Photodiode Amplifier Hybrid High Speed Si APD w/1.3Ghz Amplifier

Width: 9.2 mm

Height: 4.2 mm

Length: 9.2 mm

Rise Time: 350 ps

Unit Weight: 11.688 g

Dark Current: 500 pA

Photocurrent: 1 uA

Responsivity: 50 A/W

Mounting Style: Through Hole

Peak Wavelength: 800 nm

Vr - Reverse Voltage: 200 V

Pd - Power Dissipation: 360 mW

Half Intensity Angle Degrees: 113 deg

Noise Equivalent Power - NEP: 2E-14 W/sqrt Hz

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
