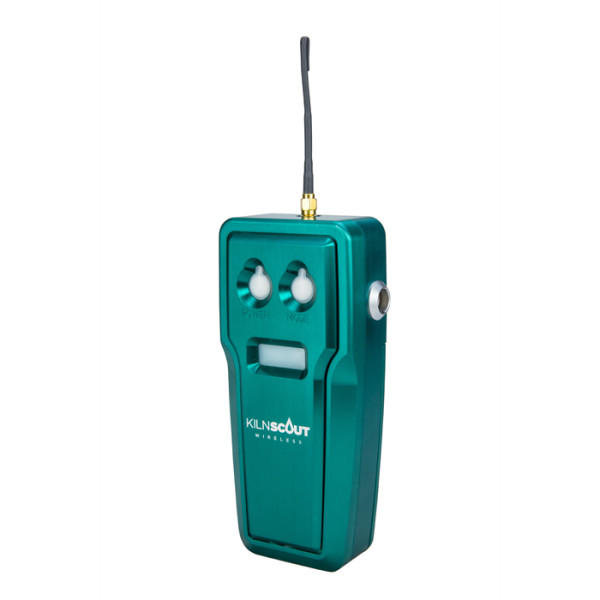

Finna KilnScout-Softwood Wireless Kiln Moisture Meter System

Specifications

Dimensions: 7.09 in (L) x 3.15 in (W) x 1.67 in (D)

Weight: 19.2 oz

Operating Temperature: -40°F to +257°F

Radio Frequency: 915 MHz

Process:SCSFP

Pin Feature:Pin

Contact Feature:Contact

Measurement Method:Radio Frequency

Product Description

The innovative KilnScout-Softwood system provides the industry’s leading wireless kiln moisture meter for batch and continuous kilns. Using capacitive measurement technology, KilnScout-Softwood allows your operation to control the drying process from direct moisture content input. This eliminates the costly feedback loop from the planer mill and unreliable time-based drying schedules. The result is improved grade recovery, increased throughput and a significant impact on your bottom line.

Features:

• Real-time moisture and temperature readings
• Scalable from 1-100 sensors, per hub, that can be placed in one kiln or split between multiple kilns if they are in wireless range
• 17 cubic feet of measurement per sensing point
• Customized email and text alerts on moisture temperature, shutdown, etc.
• Advanced monitoring and reporting software, such as viewing remotely

Benefits

• Directly control continuous and batch drying process via integration
• Optimize throughput and grade recovery
• Flexibility to measure anywhere in the kiln – 90-foot wireless transmission range
• Actively monitor drying and temperature profiles
• Maintenance requires no kiln down time
• Eliminate hot checks and monitor fire hazard
• Benchmark drying performance by season and species

Key Specifications

• Dimensions: 7.09 in (L) x 3.15 in (W) x 1.67 in (D)
• Weight: 19.2 oz
• Operating Temperature: -40°F to +257°F
• Radio Frequency: 915 MHz
•
