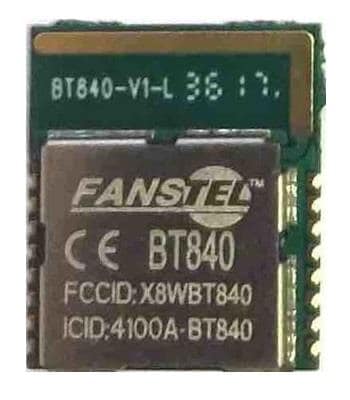

Fanstel BT840 Bluetooth Modules Bluetooth Module

Core: ARM Cortex M4F

Range: 180 m

Width: 16 mm

Height: 1.9 mm

Length: 14 mm

Antenna: Integrated Trace

Protocol: BLE, Bluetooth 5.0

Data Rate: 2 Mb/s

Frequency: 2.4 GHz

Shielding: Shielded

Dimensions: 14 mm x 16 mm x 1.9 mm

Memory Size: 256 kB, 1 MB

Sensitivity: - 96 dBm

Unit Weight: 4 g

Output Power: 8 dBm

Interface Type: I2C, SPI, UART, USB

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Receiver Sensitivity: - 96 dBm

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Operating Supply Voltage: 1.7 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
