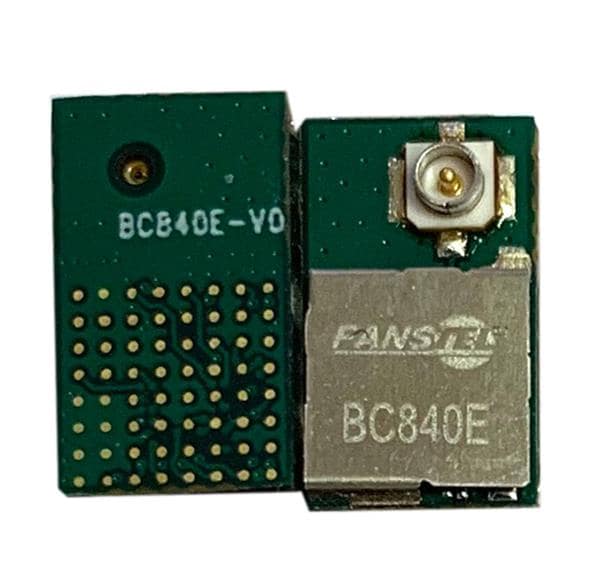

Fanstel BC840E USB Adapter nRF52840 External Ant Bluetooth Module

Core: ARM Cortex M4F

Range: 850 m

Width: 7 mm

Height: 1.8 mm

Length: 12 mm

Antenna: Chip

Protocol: BLE, Bluetooth 5.0

Data Rate: 2 Mb/s

Frequency: 2.4 GHz

Dimensions: 7 mm x 12 mm x 1.8 mm

Sensitivity: - 96 dBm

Interface Type: I2C, QSPI, SPI, UART, USB

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Receiver Sensitivity: - 96 dBm

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Antenna Connector Type: U.FL

Operating Supply Voltage: 1.7 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
