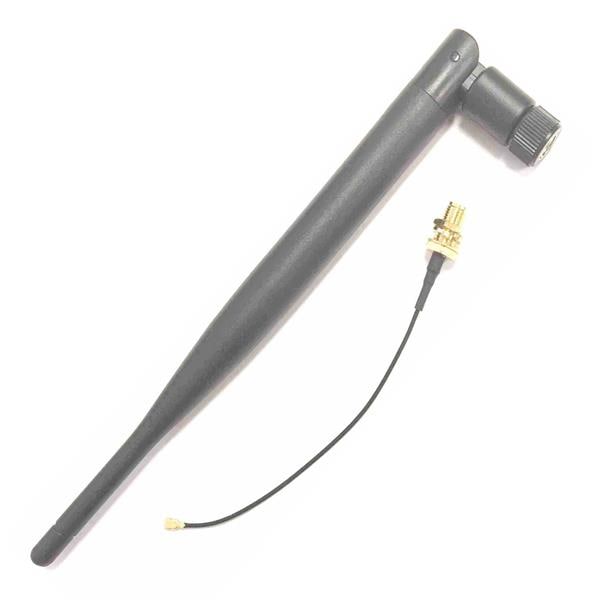

Fanstel ANT060 Passive Antenna External antenna with panel mounting hardware

Gain: 6 dBi

VSWR: 2

Style: Tilt/Swivel

Length: 195 mm

Diameter: 13 mm

Bandwidth: 100 MHz

Impedance: 50 Ohms

Technology: WiFi

Application: WiFi

Unit Weight: 28.710 g

Cable Length: 100 mm

For Use With: BT600E, BT832XE, BT840E

Polarization: Vertical

Power Rating: 10 W

Mounting Style: Panel Mount

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Whip

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
