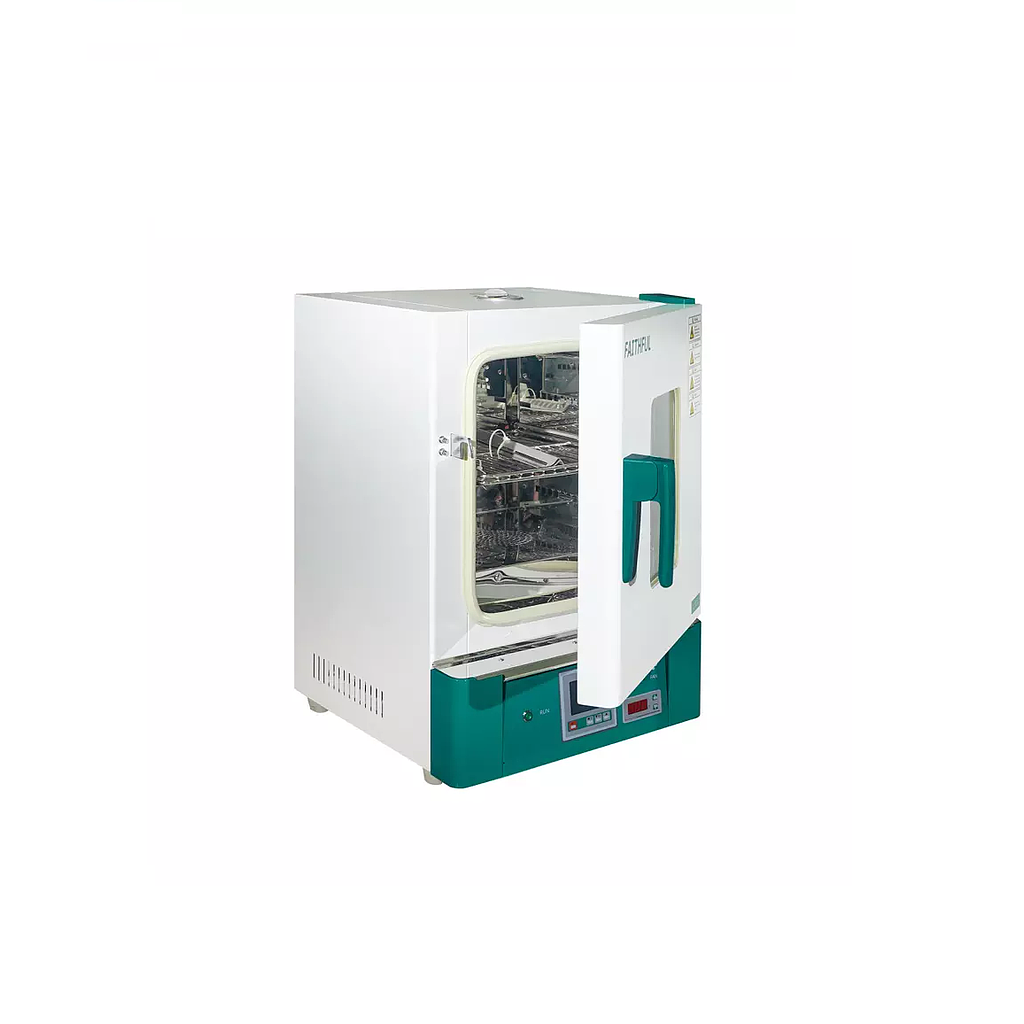

Faithful WPL-65BE Constant-Temperature Incubator

Cycle Mode: Forced convection

Function:

Temp. range: RT+5-120℃

Temp. Resolution Ratio: 0.1℃

Temp. Motion: ±1℃

Temp. Uniformity: ±1.0℃

Structure

Inner Chamber: Mirror Stainless Steel

Outer Shell: Cold rolling steel electrostatic spraying exterior

Insulation layer: High quaility foam board

Heater: Stainless steel electric heating tube

Power rating: 0.7kW

Exhaust hole: φ35mm top( with function of test hole)

Controller

Temp control mode: Two temperature section intelligent PID

Temp. setting mode: Touch button setting

Temp. display mode: Measuring temperature: LCD upper screen; setting temperature: the lower row

Timer: 0-9999min(with timing wait function)

Operation function: Fixed temperature operation, timing function, auto stop.

Additional function

Digital Independent temp.limiter.4 grades 3 speed ajustable speed fan (230 without fan speed adjuor)

Sensor deviation correction,temperature overshoot self-tuning,internal parameter locking,power-off parameter memory

Sensor: pt100

Safety device: Over temp. sound-light alarm, digital independent temp, limiter

Specification

Inner Chamber size(W*L*H)(mm): 400*360*450

Exterior size (W*L*H)(mm): 550*550*840

Volume: 65L

Shelf number: 8

Load per rack: 15kg

Shelf space: 40mm

Current rating: 220V/3.2A

Shelf fame: 4

Shelf: 2

Optional accessories: Shelf, U-disk storage, Printer, 3.5 inch color touch screen temperature controller

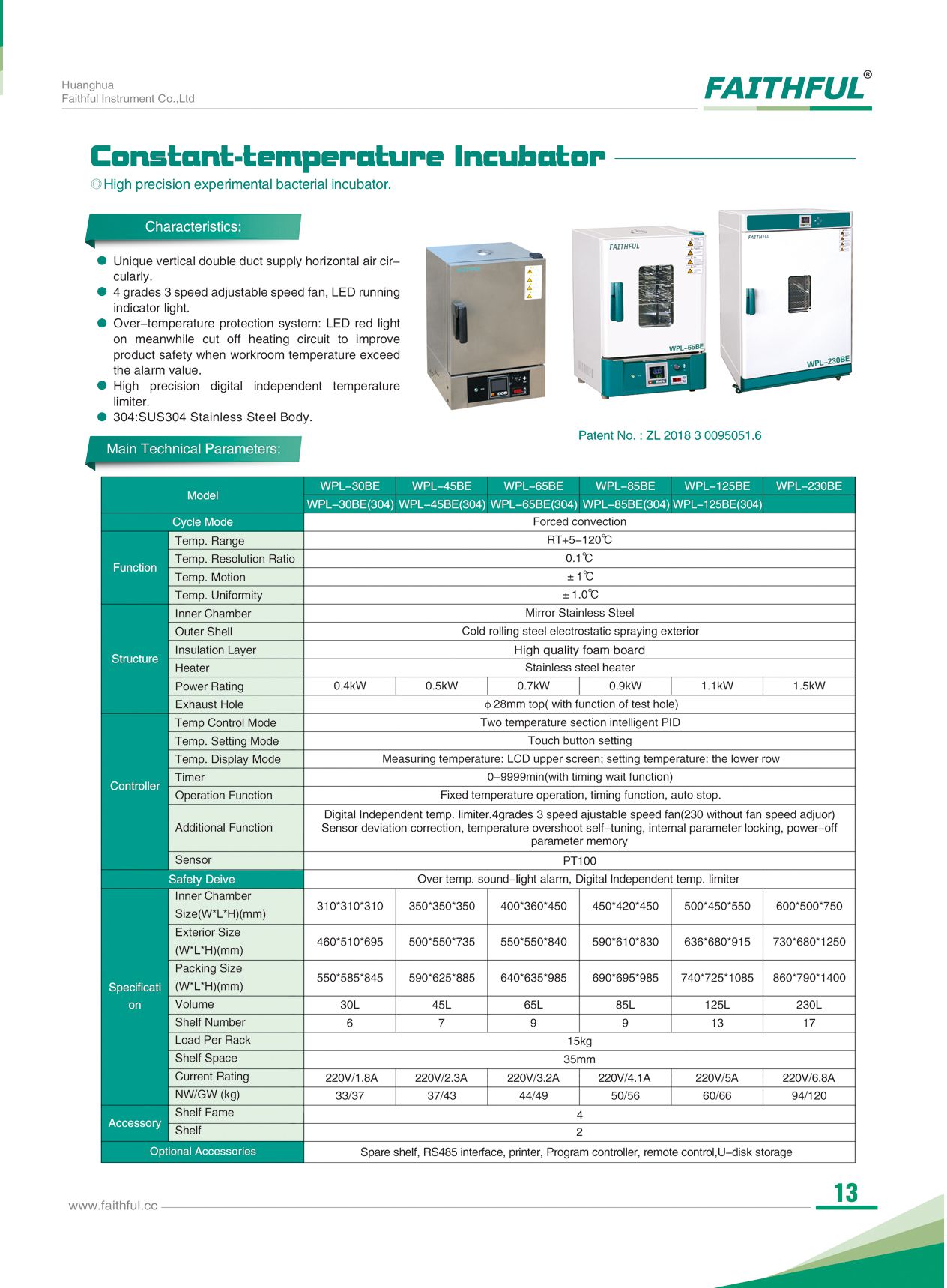

Datasheet
