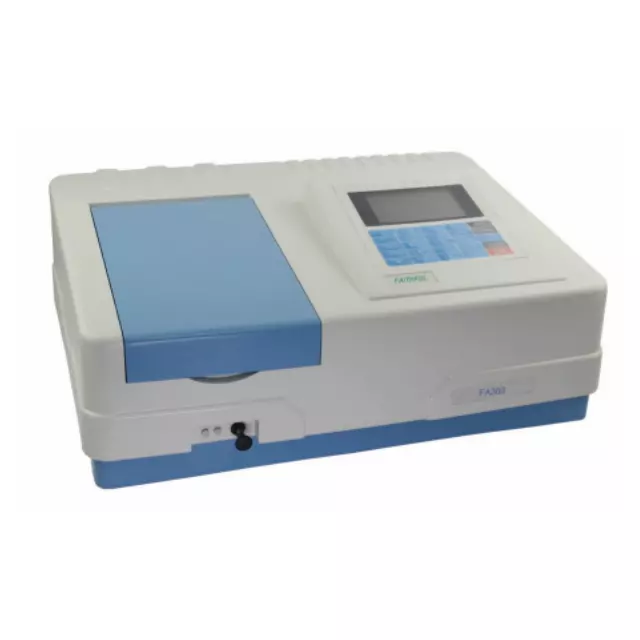

Faithful FA380 Spectrophotometer (190-1100nm; 1nm)

Optical System: Single Beam, Grating 1200 lines/mm

Wavelength Range: 190-1100nm

Spectral Bandwidth: 1nm

Wavelength Accuracy: ±0.3nm

Wavelength Repeatability: ≤0.2nm

Photometric Accuracy: ±0.002A(0-0.5Abs), ±0.004A(0.5-1.0Abs), ±0.3%T (0-100%T)

Photometric: 0.001 Abs(0-0.5Abs), 0.002Abs (0.5-1.0Abs), ≤0.1%T(0-100%T)

Stray Light: ≤0.04%T@360nm; 220nm

Stability: ±0.001A/h@500nm

Baseline Flatness: ±0.0015A

Noise: ±0.0004Abs

Display: 65 thousand true color 7 inch TFT LCD(480*800)

Photometric Mode: T,A,C,E

Photometric Range: 0-200%T,-0.301-3.0A

Detector: Silicon Photo diode

Light Source: Deuterium Lamp,Tungsten Lamp

Input: Membrane Keypad

Output: USB-A*2 Print and data output USB-B Connect PC

Compartment Optional: 8 Auto Cell holder,Solid Sample cell Holder,Micro Cell Holder,100mm Cell Holder
