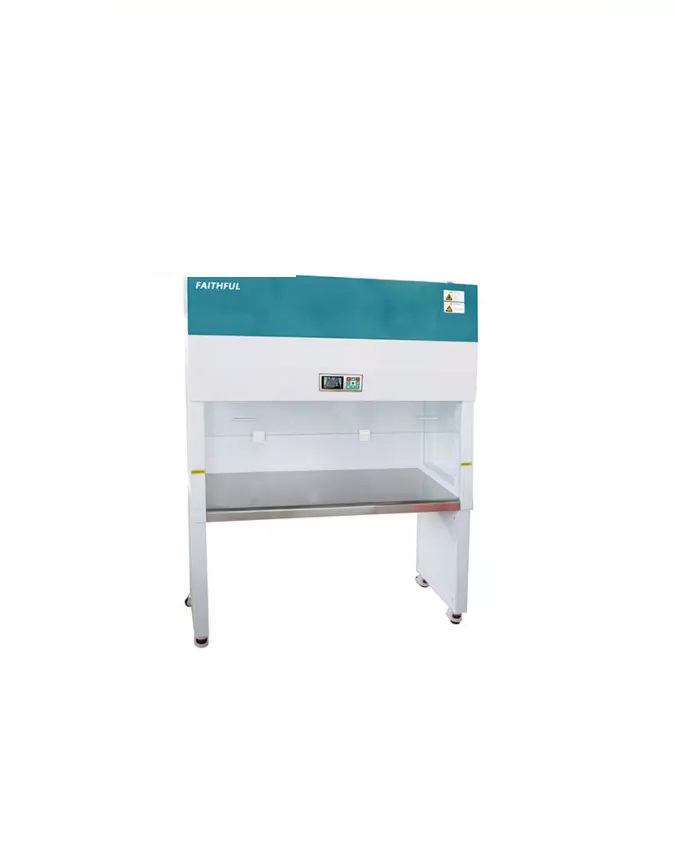

Faithful CJ-2D Biological Incubation Chamber

Applicable Station: two operators one side

Airflow Direction: Vertical

Function

Cleanliness: Class 100

Collection Efficiency: 0.3um particle ≥99.995%

Colony Count: ≤0.5/vessel (petri dish is φ 90mm )

Wind Speed: initial: 0.6（m/s）,final：0.2 （m/s）

Wind Speed Range: 0.2-0.6 （m/s）

Noise Level: ≤62db

Vibration Semi-Peak Value: ≤3um

Illumination Intensity （Lx）: ≥800LX（Activity Center）

Work Surface Bearing: 50kg

Composition

Inner Chamber: SUS304 Stainless steel plate

Outer Shell: Stainless steel electrostatic spraying exterior

Operation door: Tempered Glass

HEPA Filter （mm）: 1300*640*50 one piece

Pre-Filter （mm）: 712*360*5 one piece

Fluorescent Lamp: 24W*2

UV Lamp: 30W*1

Top Fan: 180W two pieces

Rated power: 440W

Controller

Display: LCD color screen

Wind Speed Control: Intelligent multi-level adjustable

Additional Function: Built in 2 multi-purpose sockets, high- efficiency filter, sterilization lamp replacement prompt, foot level adjustment, lighting sterilization one key on/ off

Specification

Inner Size (W*L*H)(mm): 1320*690*650

Exterior Size (W*L*H)(mm): 1460*763*1834

Max Power of universal socket: Single socket: 800W

Current Rating （50/60Hz）: AC220V/3.6A
