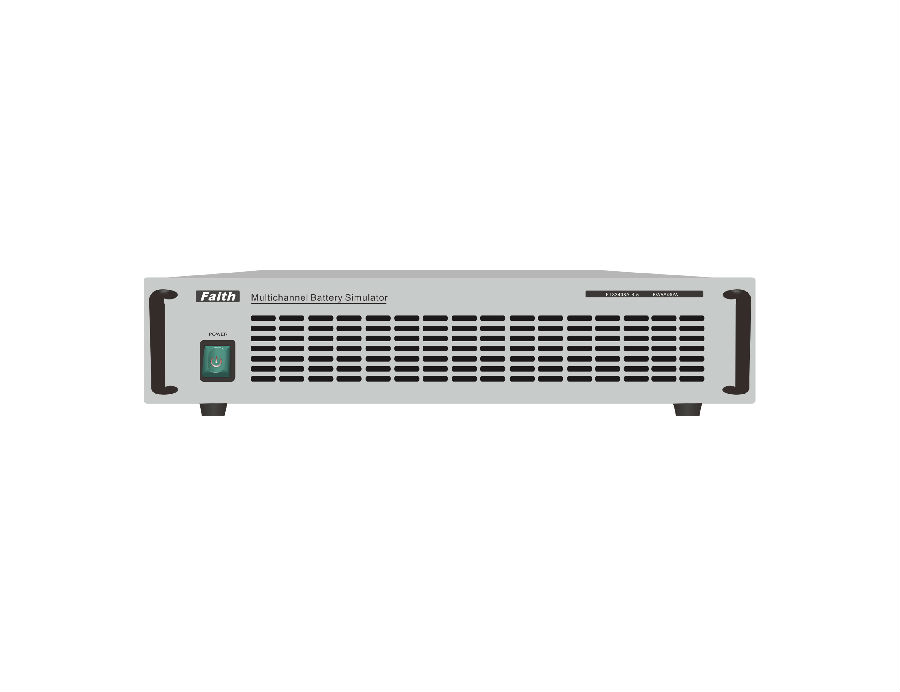

Faith FT8340-0505 Multi-Channel Bipolar DC Power Supply (5A, 5V, 25W)

Output Current: 5A

Output Voltage: 5V

Output Power: 25W

Channels: 8CH

CC mode: 　

Range: -5A～5A

Design resolution: 0.1mA

Design accuracy (25±3℃): 0.02%+1mA

Readback resolution: 0.1mA

Readback accuracy (25±3℃): 0.02%+1mA

Temperature coefficient: ＜25ppm/℃(25±3℃)

CV mode: 　

Range: 0～5V

Design resolution: 0.1mV

Design accuracy (25±3℃): 0.01%+1mV.

Readback resolution: 0.1mV

Readback accuracy (25±3℃): 0.01%+1mV.

Temperature coefficient: ＜25ppm/℃(25±3℃)

Voltage ripple (20Hz～20MHz): 2mVrms

Current ripple (20Hz～20MHz): 2mArms

Voltage rise time (no load): ＜500μs (time for 10%～90% change)

Voltage rise time (full load): ＜500μs (time for 10%～90% change)

Voltage fall time (no load): ＜500μs (time for 10%～90% change)

Voltage fall time (full load): ＜500μs (time for 10%～90% change)

Transient response: ＜50μs

Withstand voltage (output): 1500VDC

Withstand voltage (channels): 1500VDC

Programming response: ＜5ms

Communication: LAN/RS485

Input AC Voltage: 220VAC±10%

Input AC Current: ＜1A

Size: 88.1 * 482.6 * 650 mm (Height*Width*Depth)

Weight: 18Kg
