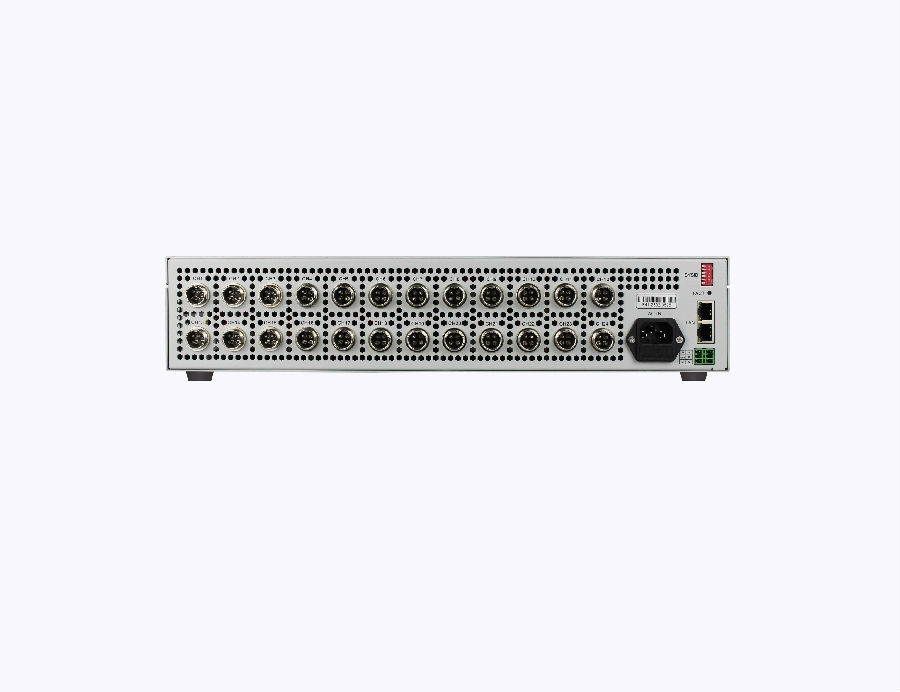

Faith FT8330A-2A Multi-Channel DC Power Supply (2A, 6V, 12W)

Output Current: 2A

Output Voltage: 6V

Output Power: 12W

Channels: configurable 6, 12, 18, 24CH for a single unit

CC mode

Range: 0～2A

Design resolution: 0.1mA

Design accuracy (25±3℃): 0.05%+0.05%F.S

Readback resolution: 0.02mA

Readback accuracy (25±3℃): 0.05%+0.05%F.S

Temperature coefficient: ＜25ppm/℃(25±3℃)

CV mode

Range: 0～6V

Design resolution: 0.1mV

Design accuracy (25±3℃): 0.01%+0.01%F.S.

Readback resolution: 0.1mV

Readback accuracy (25±3℃): 0.01%+0.01%F.S.

Temperature coefficient: ＜25ppm/ ℃(25±3℃)

Voltage ripple (20Hz～20MHz): 1mVrms

Current ripple (20Hz～20MHz): 1.2mArms

Voltage rise time (no load): ＜100μs (time for 10%～90% change)

Voltage rise time (full load): ＜100μs (time for 10%～90% change)

Voltage fall time (no load): ＜100μs (time for 10%～90% change)

Voltage fall time (full load): ＜100μs (time for 10%～90% change)

Transient response: ＜50μs

Withstand voltage (output): 1500VDC

Withstand voltage (channels): 1500VDC

Programming response: ＜5ms

Communication: LAN/RS485

Input AC Voltage: 220VAC±10%

Input AC Current: ＜1A

Size: 88.1 * 482.6 * 521.4 mm (Height*Width*Depth)

Weight: 10Kg
