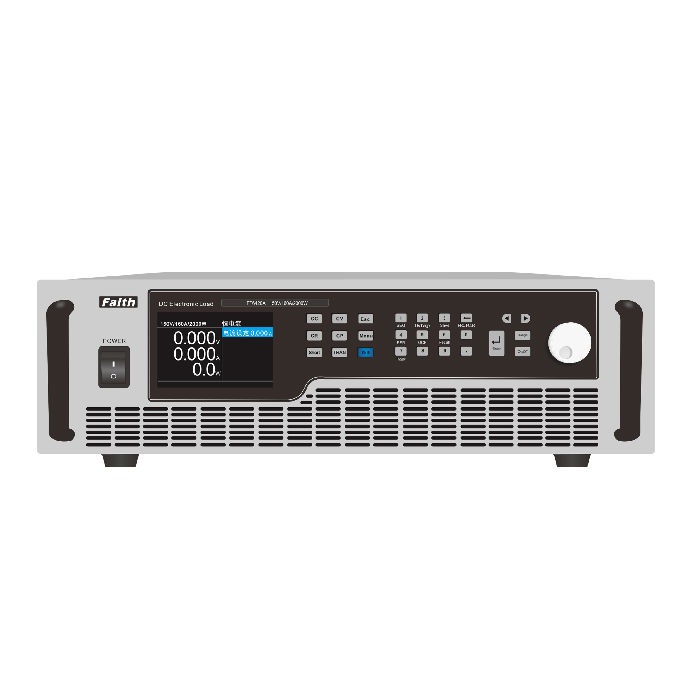

Faith FT6431A Medium-Power DC Electronic Load (600V, 90A, 3000W)

Voltage: 600V

Current: 90A

Power: 3000W

Min Operate Voltage: 5V@90A

CC

Range: 9A/90A

Resolution: 1.5mA/15mA

Accuracy: 0.1%+0.15%F.S. low range; 0.1%+0.15%F.S. high range

CV

Range: 120V/600V

Resolution: 2mV/10mV

Accuracy: 0.05%+0.1%F.S. low range; 0.05%+0.1%F.S. high range

CP

Range: 0~3000W

Resolution: 60mW

Accuracy: 0.5%+1%F.S.

CR

Range: 0.55~400Ω low range; 2.6~2000Ω high range

Resolution: 16bit

Accuracy: 0.35%+0.075S low range; 0.1%+0.005S high range

Weight: 28kg

Communication: RS232, LAN

Display: TFT LCD Display

Dimension (mm): 483(W)×133(H)×600(D)

Datasheet
