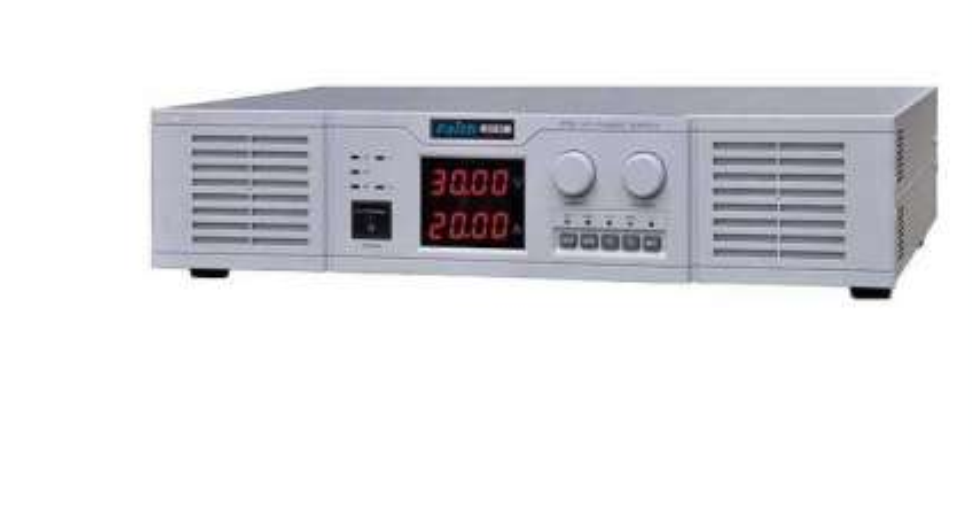

Faith FT30-150 DC Power Supply (30V, 150A, 4500W)

Voltage: 30V

Current: 150A

Power: 4500W

AC input: Single-phase 220V±10%

50Hz/60Hz

Output voltage 0-30V

Output current 0-150A

Output power: 4500W

Power supply stability ≦ 0.3%+10mV

Load stability ≦ 0.5%+30mV

Ripple ≤0.5%+10mV (rms)

Voltage value display

4-digit table Accuracy: ±1% +1 word (10%-100% rated value)

Display format 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V

Current value display

4-digit table Accuracy: ±1% +1 word (10%-100% rated value)

Display format 0.000A-9.999A; 0.00A-99.99A; 0.0A-999.9A

Time controller

T1 time setting: 1S—9999S; 1M-9999M; 1H-9999H

T2 time setting: 1S—9999S; 1M-9999M; 1H-9999H

Number of cycle outputs: 1-9999 times; infinite cycle

Remote adjustment Voltage adjustment: DC/0-5V; Current adjustment: DC/0-5V

Remote display Voltage display: DC/0-5V; Current display: DC/0-5V

Output overvoltage protection Built-in O.V.P protection, protection value is rated value + 5%

Output overcurrent protection Overload, short circuit constant current output

Overtemperature protection Built-in O.T.P protection, protection value is 85℃±5% (heat sink temperature)

Voltage setting Encoder knob

Current setting Encoder knob

Output polarity Output positive (+) and negative (-) can be grounded arbitrarily

Cooling method Forced air cooling

Operating environment Designed for indoor use, temperature: 0℃～40℃; humidity: 10%～85% RH

Storage environment Temperature: -20℃～70℃; humidity: 10%～90% RH
