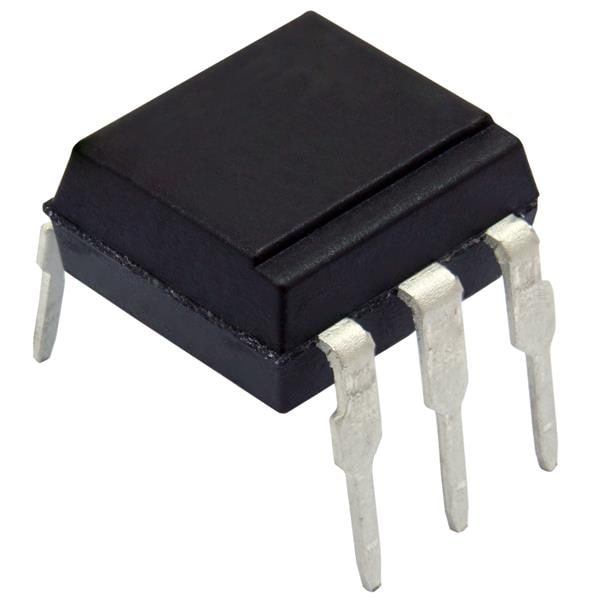

Fairchild MOC3043M Triac & SCR Output Optocouplers DIP-6 ZERO TRIAC

Width: 6.6 mm

Height: 3.53 mm

Length: 8.89 mm

Output Type: PhotoTriac

Unit Weight: 855 mg

Mounting Style: Through Hole

Isolation Voltage: 5250 Vrms

Number of Channels: 1 Channel

If - Forward Current: 60 mA

Vf - Forward Voltage: 1.25 V

Zero-Crossing Circuit: With Zero-Crossing Circuit

Zero-Crossing Voltage: 20 V

Pd - Power Dissipation: 250 mW

Maximum Trigger Current: 5 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Off-state Output Voltage - VDRM: 400 V
