Fairchild FSA1258L8X Analog Switch ICs Low RON Low Voltage Dual SPST Analog

Width: 1.6 mm

Height: 0.5 mm (Max)

Length: 1.6 mm

Supply Type: Single Supply

Unit Weight: 25 mg

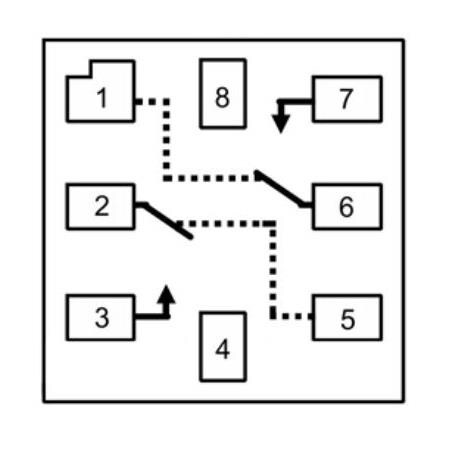

Configuration: 2 x SPST

On Time - Max: 35 ns

Mounting Style: SMD/SMT

Off Time - Max: 15 ns

Number of Channels: 2 Channel

On Resistance - Max: 1.15 Ohms

Supply Current - Max: 500 nA

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.65 V

Pd - Power Dissipation: 180 mW

Switch Continuous Current: 200 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
