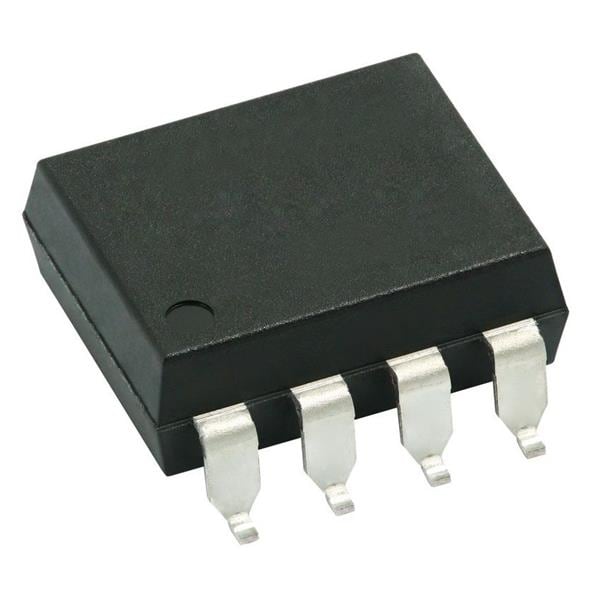

Fairchild FOD2743BS Optically Isolated Amplifiers Error Amp Coupler Transistor Output

Width: 6.86 mm

Height: 3.94 mm

Length: 9.91 mm

Output Type: Phototransistor

Unit Weight: 720 mg

Mounting Style: SMD/SMT

Isolation Voltage: 5000 Vrms

Reference Voltage: 2.495 V

Number of Channels: 1 Channel

If - Forward Current: 20 mA

Vf - Forward Voltage: 1.2 V

Current Transfer Ratio: 50 % to 100%

Maximum Collector Current: 50 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Maximum Collector Emitter Voltage: 70 V

Collector-Emitter Breakdown Voltage: 70 V

Maximum Collector Emitter Saturation Voltage: 400 mV
