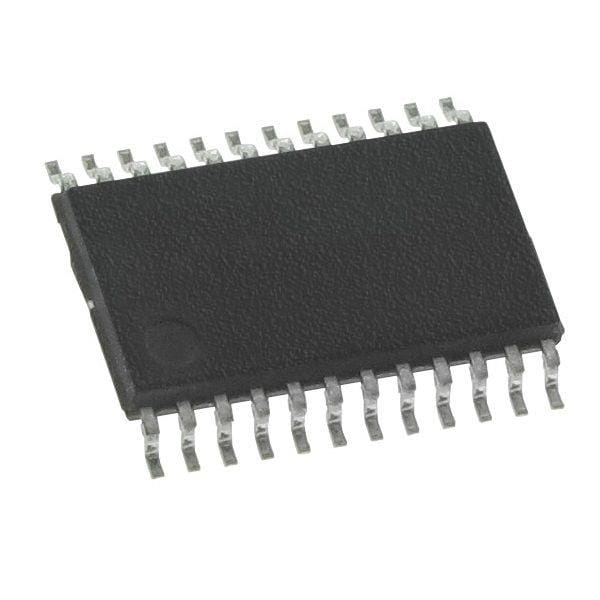

Fairchild 74LCX543MTC CMOS Oct Registered Trans

Width: 4.4 mm

Height: 0.95 mm

Length: 7.8 mm

Function: Oct Registered Trans

Polarity: Non-Inverting

Technology: CMOS

Input Level: LVTTL, TTL

Output Type: 3-State

Unit Weight: 212 mg

Logic Family: 74LCX

Output Level: LVCMOS

Mounting Style: SMD/SMT

Number of Channels: 8 Channel

Number of Circuits: 8 Circuit

Supply Current - Max: 10 uA

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2 V

Propagation Delay Time: 8 ns

Low Level Output Current: 24 mA

High Level Output Current: - 24 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
