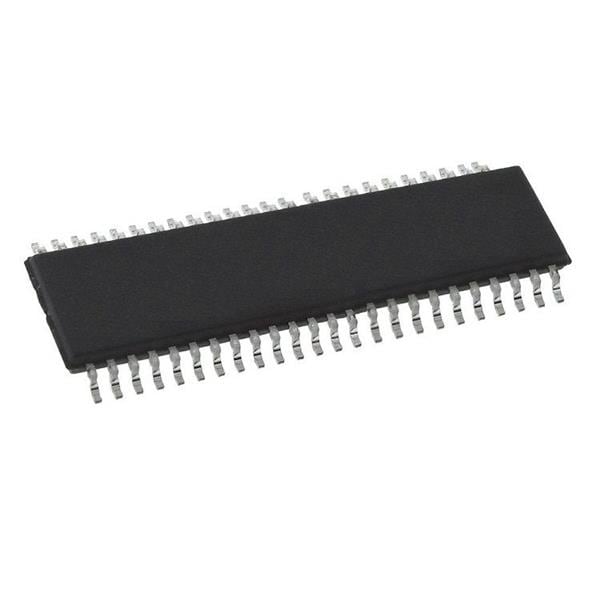

Fairchild 74LCX16373MTDX D-Type 16-Bit Trans Latch

Width: 6.1 mm

Height: 0.9 mm

Length: 12.5 mm

Function: 16 bit Transparent Latch

Polarity: Non-Inverting

Logic Type: Transparent Latch

Reset Type: No Reset

Output Type: 3-State

Unit Weight: 421 mg

Logic Family: 74LC

Mounting Style: SMD/SMT

Quiescent Current: 20 uA

Moisture Sensitive: Yes

Number of Channels: 16 Channel

Number of Circuits: 2 Circuit

Supply Current - Max: 20 uA

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2 V

Number of Input Lines: 4 Line

Number of Output Lines: 3 Line

Propagation Delay Time: 5.9 ns at 2.7 V, 5.4 ns at 3.3 V

Operating Supply Voltage: 2 V to 3.6 V

High Level Output Current: - 24 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
