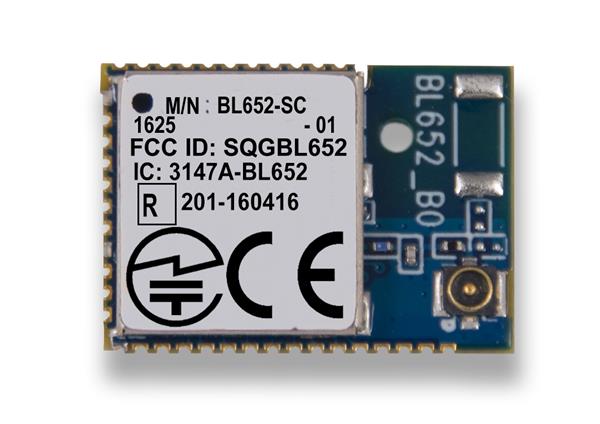

Ezurio BL652-SC-01-T/R Multiprotocol Modules BLE v4.2 Module NFC External Antenna

Class: Class 2

Antenna: External

Data Rate: 1 Mb/s

Frequency: 2.4 GHz

Dimensions: 14 mm x 10 mm x 2.1 mm

Sensitivity: - 96 dBm

Unit Weight: 420 mg

Output Power: 4 dBm

Interface Type: GPIO, I2C, SPI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: NFC

Receiver Sensitivity: - 96 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Antenna Connector Type: External

Operating Supply Voltage: 1.8 V to 3.6 V

Supply Current Receiving: 5.4 mA

Supply Current Transmitting: 5.3 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.0
