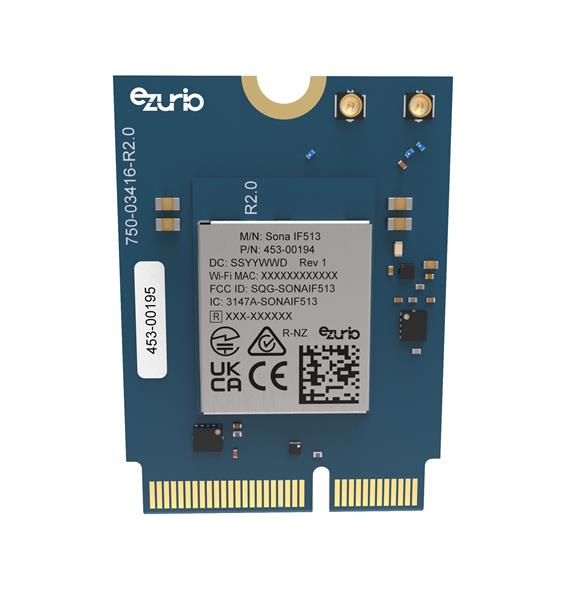

Ezurio 453-00195 Wireless Modules Module, Sona IF513, Antenna Diversity, M.2, Key E, SDIO, UART

Features: Physical Interfaces,

Data Rate: 143 Mb/s

Frequency: 2.4 GHz, 5 GHz, 6 GHz

Shielding: Shielded

Dimensions: 30 mm x 22 mm x 3.1 mm

Modulation: GFSK

Unit Weight: 2 g

Output Power: 17 dBm

Interface Type: SDIO, UART

Mounting Style: SMD/SMT

Supply Voltage - Max: 3.5 V

Supply Voltage - Min: 3.13 V

Antenna Connector Type: MHF4L

Protocol - WiFi - 802.11: 802.11 a/b/g/n/ax

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
