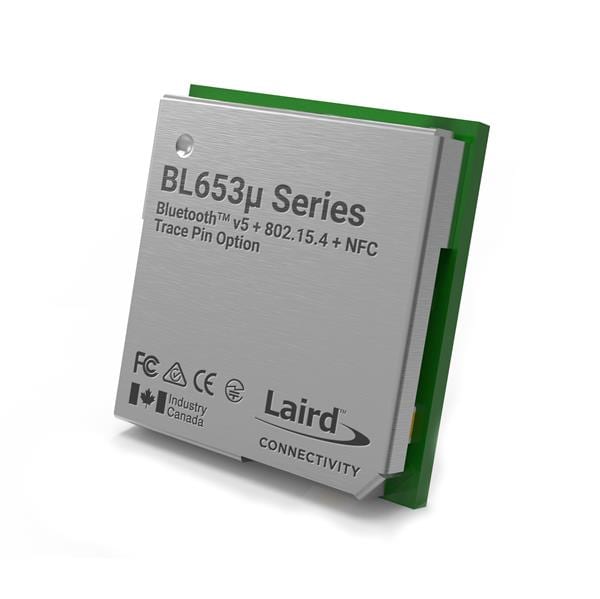

Ezurio 453-00060C Multiprotocol Modules BL653u module (Nordic nRF52833) - Trace pin (Cut Tape)

Class: Class 2

Data Rate: 1 Mb/s

Frequency: 2.4 GHz

Dimensions: 6.3 mm x 5.6 mm x 1.6 mm

Unit Weight: 10 g

Output Power: 8 dBm

Interface Type: ADC, GPIO, I2C, I2S, SPM, UART, USB

Moisture Sensitive: Yes

Protocol - Sub GHz: NFC

Receiver Sensitivity: - 96 dBm

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Antenna Connector Type: External

Operating Supply Voltage: 1.7 V to 5.5 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.1

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
