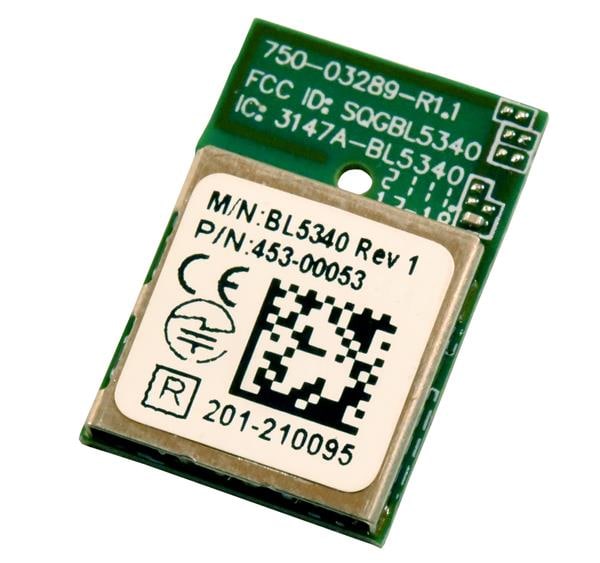

Ezurio 453-00053C Multiprotocol Modules BL5340 series - Multi-Core / Protocol Bluetooth + 802.15.4 + NFC Module (Nordic nRF52340) - Trace Pad (Cut Tape)

Class: Bluetooth Low Energy (BLE)

Data Rate: 2 Mb/s

Frequency: 2.4 GHz

Dimensions: 15 mm x 10 mm x 2 mm

Unit Weight: 1 g

Output Power: 3 dBm

Interface Type: ADC, GPIO, I2C, I2S, SPM, UART, USB

Moisture Sensitive: Yes

Protocol - Sub GHz: NFC

Receiver Sensitivity: - 98 dBm

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Antenna Connector Type: External

Operating Supply Voltage: 1.7 V to 5.5 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.2

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
