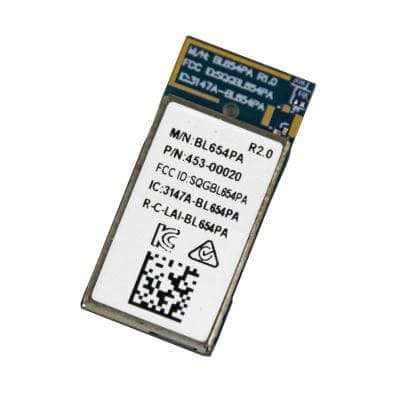

Ezurio 453-00020C Bluetooth Modules Module, BL654 PA, Integrated Antenna (Cut Tape)

Class: Class 2

Data Rate: 2 Mb/s

Frequency: 2.4 GHz

Dimensions: 22 mm x 10 mm x 2.2 mm

Unit Weight: 1 g

Output Power: 18 dBm

Interface Type: GPIO, I2C, I2S, SPI, UART, USB

Moisture Sensitive: Yes

Protocol - Sub GHz: NFC

Receiver Sensitivity: - 107 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Antenna Connector Type: PCB

Operating Supply Voltage: 3 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.0

Protocol - ANT, Thread, Zigbee - 802.15.4: Thread
