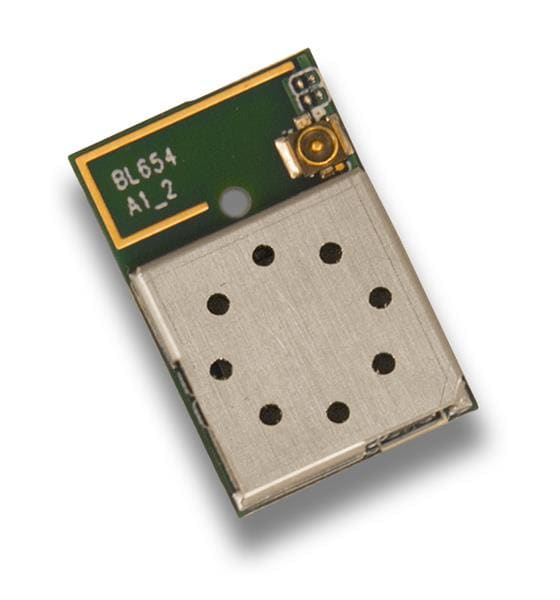

Ezurio 451-00002 Multiprotocol Modules BL654 - Bluetooth v5 802.15.4 / NFC Mod

Class: Bluetooth Low Energy (BLE)

Data Rate: 2 Mb/s

Frequency: 2.4 GHz

Dimensions: 15 mm x 10 mm x 2.2 mm

Sensitivity: - 92 dBm

Unit Weight: 420 mg

Output Power: 8 dBm

Interface Type: GPIO, I2C, SPI, UART, USB

Moisture Sensitive: Yes

Protocol - Sub GHz: NFC

Receiver Sensitivity: - 92 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Antenna Connector Type: IPEX

Operating Supply Voltage: 1.7 V to 3.6 V

Supply Current Receiving: 5.4 mA

Supply Current Transmitting: 14.1 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.0

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
