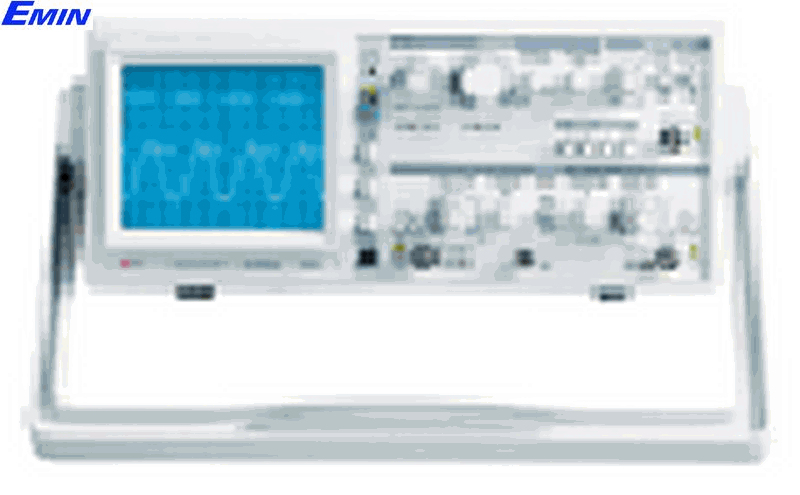

EZ DIGITAL OS-5040A Analoge Oscilloscope (40Mhz, 2CH)
ManufacturerEZ DIGITAL(View more products from this manufacturer)
ModelOS-5040A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
40MHz 2CH dual trace
6 inch large size high luminance CRT
wide dynamic range even at high frequencies
High deflection factor
Max. sweep time of 20ns / div
Variable hold - off function
Delay sweep function
Level control allows superior triggering
TV synch. circuit
X - Y operation
Signal delay line
Scale Illumination
Maximum input Voltage: 250V pp
Power suply: 220VAC
Weight 7.2Kgs
Dimension: 320mm(W) 140mm(H) 430mm(L)
Include: Operator’s manual1, Spare fuse 2 Power cord 1, probe
Manufacture : EZ - Korea
Origin : Korea
Specifications
| MODEL | OS-5040A | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRT | Type | 6-inch rectangular screen with internal graticul : 8X10div(1div=1cm) | ||||||||||||||||||
| Acceleration Potential | DC-2MHz(-3dB) | |||||||||||||||||||
| Z-AXIS INPUT (INTENSITY MODULATION) | Input Signal | Positive going signal decreases intensity +5Vp-p or more signal cases noticeable modutation at normal intensity settings | ||||||||||||||||||
| Bandwith | DC-2MHz(-3dB) | |||||||||||||||||||
| Coupling | DC | |||||||||||||||||||
| Input Impedance | 20KW-30KW | |||||||||||||||||||
| Maximum input Votage | 30V(DC+peak AC) | |||||||||||||||||||
| VERTICAL DEFLECTION | Bandwith(-3dB) | DC(10Hz) to 40MHz DC(10Hz) to 7MHz(X5Mag on) | ||||||||||||||||||
| Modes | CH1, CH2, ADD,DUAL(CHOP:time/div 0.2 to 5ms ALT:time/div 2ms to 0.2$#181;s, to 0.1µs(9060D)) | |||||||||||||||||||
| Deflection Factor | 5mV/div to 5V/div 1mV/div (X5Mag on) in 10 calibrated steps of 1-2-5 sequence | |||||||||||||||||||
| Accuracy | ±3% (±5% x%Mag on) | |||||||||||||||||||
| Input Impedance | approx. x 1mW in parallel 25pF | |||||||||||||||||||
| Maximum Input Voltage | 250V(DC+peak AC) | |||||||||||||||||||
| Input Coupling | CH2 invert | |||||||||||||||||||
| Rise Time | 8.8ns or less (50ns or less: x5Mag on) | |||||||||||||||||||
| CH1 Out | 20mV/div into 50W:DC to 10MHz(-3dB) | |||||||||||||||||||
| Polarity | CH2 invert | |||||||||||||||||||
| Signal Delay Time | delay cable supplied | |||||||||||||||||||
| VERTICAL DEFLECTION (CH3 FOR OS-9100D ONLY) | Deflection Factor | |||||||||||||||||||
| Bandwith(-3dB) | ||||||||||||||||||||
| Rise time | ||||||||||||||||||||
| Accuracy | ||||||||||||||||||||
| Input Impedance | ||||||||||||||||||||
| Maximum Input Voltage | ||||||||||||||||||||
| HORIZONTAL DEEFLECTION | Sweep Mode | A,A int B, B, B TRIG D, X-Y | ||||||||||||||||||
| Time Base A | 0.2µ/div to 0.2s/div in 0.1µs/div to 10µs/div in 19 calibrated steps of 1-2-5 sequence 7 calibrated steps of 1-2-5 sequence |
|||||||||||||||||||
| Hold- off time | variable with hold-off control | |||||||||||||||||||
| Time Base B | 0.2µ/div to 0.2s/div in 0.1µs/div to 10µs/div in 7 calibrated steps of 1-2-5 sequence 7 calibrated steps of 1-2-5 sequence |
|||||||||||||||||||
| Delay Sweep Position | 1div or less to 10div or more | |||||||||||||||||||
| Dealy Time Jitter | better than 20,000:1 | |||||||||||||||||||
| Sweep Magnification | 10 time(Max Sweep Rate:20ns/div) | |||||||||||||||||||
| Accuracy | ±3%(additional error for magnifier:2%) | |||||||||||||||||||
| TRIGGER SYSTEM | Modes | Auto, Norm, TV-V, TH-H | ||||||||||||||||||
| Source | CH1, CH2, LINE, EXT | |||||||||||||||||||
| Coupling | AC | |||||||||||||||||||
| Slope | + or - | |||||||||||||||||||
| Sensitivity (Auto, Norm) |
|
|
||||||||||||||||||
| TV-V,TV-H | at least 1 div or 1.0Vp-p | |||||||||||||||||||
| External Trigger Input Impedance | 1MW in parallel with approx. 30pF | |||||||||||||||||||
| Max. Input Voltage | 250V (DC+peak AC) | |||||||||||||||||||
| X-Y OPERATION | Sensitivity | same as vertical deflection for both, X-axis(CH1) and Y-axis(CH2) | ||||||||||||||||||
| X-axis Bandwith | DC to 500kHz (-3dB) | |||||||||||||||||||
| X-Y Phase Difference | 3° or less(at DC to 50kHz) | |||||||||||||||||||
| CALIBRATOR | 1KHz Square wave, 0.5Vp-p ±3%, duty ratio:50% | |||||||||||||||||||
| POWER SUPPLY | Line Voltage | 100,120,220,240,VAC ±10% | ||||||||||||||||||
| Line Frequency | 50/60Hz | |||||||||||||||||||
| Power Consumption | 40W | 50W | ||||||||||||||||||
| PHYSICAL CHARACTERISTICS | Size | 320mm(W)X135mm(H)X320mm(D) | ||||||||||||||||||
| Weight | 7.2Kg | 7.7Kg | ||||||||||||||||||
| OTHERS | Accessories Supplied | Operators manual 1 Spare fuse 2 Power cord1 Probe(option) 2 |
||||||||||||||||||
