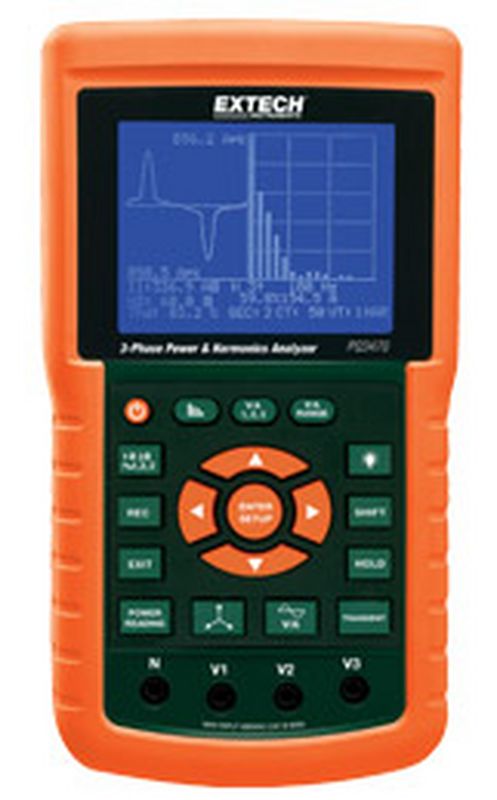

EXTECH PQ3470 3-Phase Graphical Power & Harmonics Analyzer/Datalogger

AC Voltage (True rms): 600.0V /±(0.5%rdg)

AC Current: 3000A /±(0.5%rdg)

Active Power (MW): 9.999MW /±(1.0%rdg)

Apparent Power (MVA): 9.999MVA /±(1.0%rdg)

Reactive Power (MVAR): 9.999MVAR /±(1.0%rdg)

Power Factor: 0.00 to 1.00 /±0.04

Frequency Range: 45Hz to 65Hz /±0.1Hz

Phase -180° to +180.0° /±1°

Harmonics: 1 to 50th /±2% (1 to 20); ±4% (21 to 31)

Crest Factor: 1.00 to 99.99 /±(5%)

Current Clamp input: 200mV, 300mV, 500mV /±(0.5%rdg)

1V, 2V, 3V; user-selectable

Peak AC Voltage Accuracy: ±(5%)

Peak AC Current Accuracy: ±(5%)

Active Power Energy (MWH): 0.0kWh to 9.999MWH /±(2.0%rdg)

Apparent Power Energy (MVAH): 0.0KVAh to 9.999MVAH /±(2.0%rdg)

Reactive Power Energy (MVARH) :0.0kVARh to 9.999MVARH /±(2.0%rdg)

Datalogging: 30,000 readings (2GB SD memory Card)

Dimensions/Weight: 8.86 x 4.92 x 2.52" (225 x 125 x 64mm) / 2.2lbs (1010g)

Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD memory card, Universal AC adaptor (100 to 240V), and case. Clamp probes sold separately.

option

PQ34-2 .... 200A Current Clamp Probes with 0.8" (19mm) jaw size 499.99 USD

PQ34-12 .. 1200A Current Clamp Probes with 2” (50mm) jaw size 699.00 USD

PQ34-30 .. 3000A (24”/600mm) Flexible Current Clamp Probes 899.00 USD
