EXTECH PQ3350-3 3-Phase Power & Harmonics Analyzers (3000A )

ACV (True rms): 600V /±0.5%rdg

AC Current: 3000A /±0.5%

Active Power (kW): 9.999MW /±1%

Apparent Power (kVA): 9999kVA /VA=Vrms x Arms

Reactive Power (kVAR): 9999kVAR /VAR= sqr (VA2-W2)

Power Facto:r 0.0 to +1.00 /±1.5%°

Frequency: 45-65Hz /0.1Hz

Phase: -180.0°~ 0°~ +180.0° /±1°

Harmonics: 1 to 99 ±2%

Crest Factor: 1.00 to 99.99 /±5%

Peak AC Voltage accuracy: ±5%

Peak AC Current accuracy: ±5%

Active Power Energy (kWh): 0mWh to 999,999kWh

Reactive Power Energy (kVARh): 0.0kVARh to 1000MWh

Datalogging 52428 records (single phase)/17476 records (3 phase)

Dimensions/Weight: 10.1 x 6.1 x 2.3" (257 x 155 x 57mm)/ 2.5 lbs (1160g)

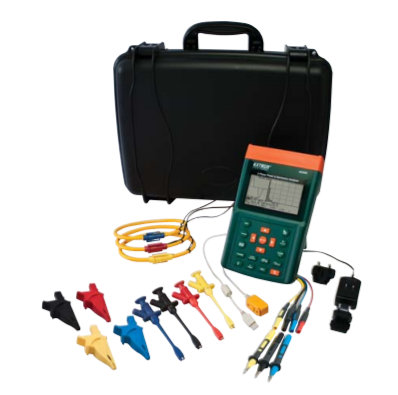

Includes (3) flexible current clamps, (4) voltage leads with alligator clips and retractable plunger clips, 8 AA batteries, universal AC adaptor, software, USB interface cable, and case
