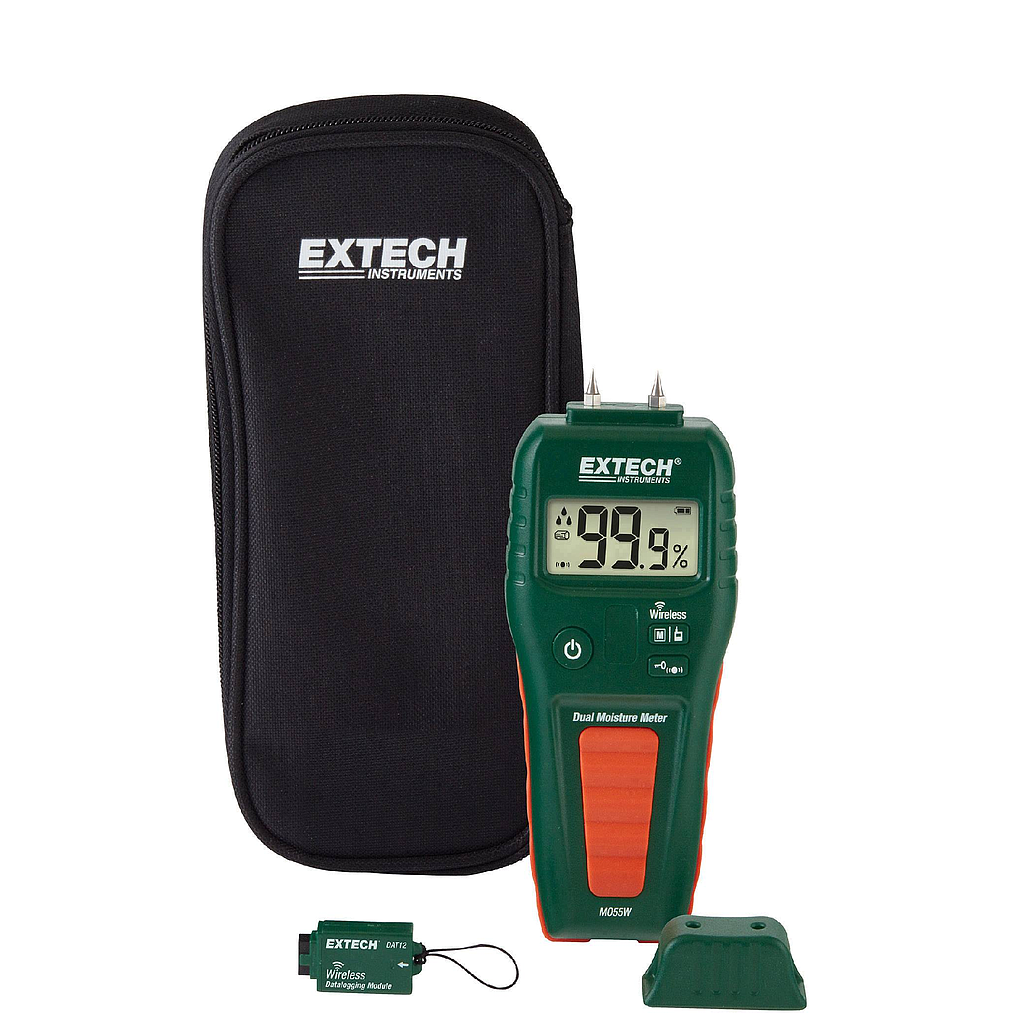

EXTECH MO55W Datalogging Pin/Pinless Moisture Meter with Bluetooth

*Pin Mode

Sensor Type: Contact Pins (Electrical Resistance Method)

Wood Moisture Range: 5 to 50.0%

Other Building Materials: 1.5 to 33.0%

Resolution: 0.1%

Basic Accuracy:± (3% reading + 5 digits)

Measurement Depth: ~0.3" (8mm) depth using 0.4" (10mm) pins

Wood Moisture Icon Levels: Low: 5 to 11.9%; Medium: 12 to 15.9%; High: 16 to 50%

Building Material Icon Levels: Low: 1.5 to 16.9%; Medium: 17 to 19.9%; High: 20 to 33%

*Pinless Mode

Sensor Type: Pinless sensor (Capacitance Sensing Method)

Wood Moisture Range: 0.1 to 99.9%

Other Building Materials: 0.1 to 99.9%

Resolution: 0.1%

Measurement Depth: 1" (25mm) depth

Wood Moisture Icon Levels: Low: 0 to 16.9%; Medium: 17 to 29.9%; High: 30 to 99.9%

Building Material Icon Levels: Low: 0 to 16.9%; Medium: 17 to 29.9%; High: 30 to 99.9%

iOS/Android compatibility: iOS 8.0 and higher/ Android 4.3 and higher

Datalogging (with DAT12): 15,360 data points

Dimensions: 6.7 x 2.6 x 1.2" (170 x 65 x 30mm)

Weight: 4.2oz (120g) battery not included
