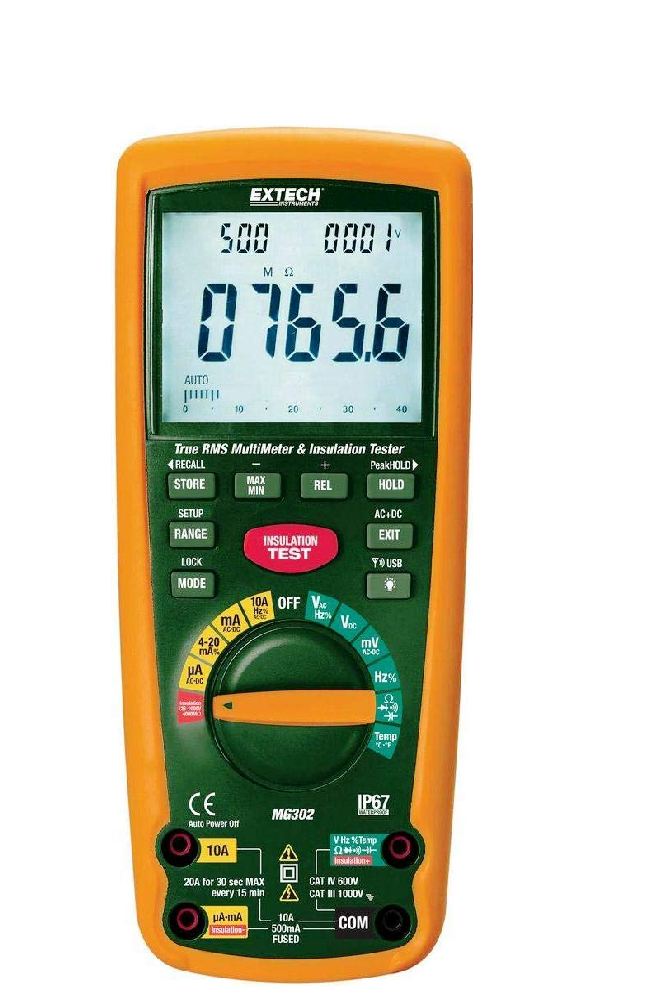

EXTECH MG302 (No DMM) MultiMeter/1000V Insulation Tester with Wireless PC interface (433MHz)

Insulation Tester:

Insulation Resistance: 4MΩ, 40MΩ, 400MΩ, 4000MΩ /0.001MΩ /±3%

Insulation Test Voltages: 125V, 250V, 500V, 1000V

Multimeter:

AC Voltage: 1000V /0.1mV /±1%

DC Voltage: 1000V /0.01mV /±0.06%

AC Current: 10A /0.1μA /±1.5%

DC Current:10A /0.01μA /±1.0%

Resistance: 40MΩ /0.01Ω /±0.3%

Capacitance: 40mF /0.001nF /±3.5%

Frequency: 100MHZ /0.001HZ /±0.1%

Duty Cycle: 0.1 to 99.9% /0.01 /±1.2%

Temperature: -50 to 1200°C /0.1°C /±1% + 2.5°C

4-20mA%: -25 to 125% /0.01%

Continuity/Diode: Yes

Power source: 6 x AA batteries

Dimensions: 7.8 x 3.6 x 1.9” (200 x 92 x 50mm)

Weight: 20.5oz (582g)

Complete with remote receiver with USB cable, Windows® compatible software, heavy duty test leads, alligator clip test lead, Type K bead wire temperature probe with adapter, carrying case, and 6 x AA batteries
