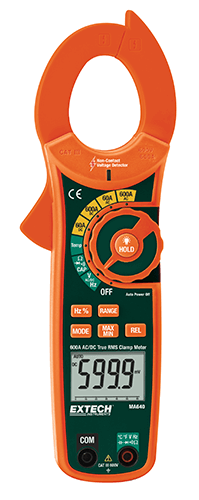

Extech MA640 600A True RMS AC/DC Clamp Meter + NCV

True RMS

AC Current: 60.00A, 600.0A /0.01A /±2.8%

DC Current: 60.00A, 600.0A /0.01A /±2.8%

AC Voltage: 6.000V, 60.00V, 600.0V /0.001V /±1.8%

DC Voltage: 600.0mV, 6.000V, 60.00V, 600.0V /0.1mV /±1.5%

Resistance: 600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ,60.00MΩ /0.1Ω /±1.0% Frequency: 10Hz to 10kHz /0.01nF /±3.0%

Capacitance: 40.00nF, 400.0nF, 4.000μF, 40.00μF, 400.0μF, 4000μF /0.01nF /±3.0%

Temperature:-20 to 760°C /±3%

Duty Cycle: 0.5 to 99.0% /0.1% /±1.2%

Diode: Yes

Continuity: Yes

Dimensions: 232x77x39mm

Weight: 271g

Complete with test leads, general purpose Type K bead wire temperature probe, 9V battery and carrying case

Manufaturer: Extech USA

Datasheet

Manual
