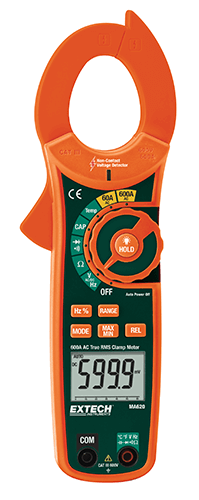

EXTECH MA620 True RMS AC Clamp Meter + NCV (AC 600A; True RMS)

Display counts: 6000

AC Current (True RMS): 60.00A, 600.0A 0.01A±(2.8% + 8d)

DC Current (MA640 only): 60.00A, 600.0A' 0.01A' ±(2.8% + 8d)

AC Voltage (True RMS): 6.000V, 60.00V, 600.0V, 0.001V±(1.8% + 8d)

DC Voltage: 600.0mV, 6.000V, 60.00V, 600.0V0.1mV±(1.5% + 2d)

Resistance: 600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 60.00MΩ, 0.1Ω±(1.0% + 4d)

Frequency: 10Hz to 10kHz' 0.01nF, ±(3.0% + 5d)

Capacitance: 40.00nF, 400.0nF, 4.000μF, 40.00μF, 400.0μF, 4000μF, 0.01nF±(3.0% + 5d)

Temperature: -4 to 1400°F (-20 to 760°C), 0.1°, ±(3% + 9°F/5°C)

Duty Cycle: 0.5 to 99.0%, 0.10%, ±(1.2% + 2d)

Diode: Yes

Continuity: Yes

Dimensions: 9.1x3x1.5" (232x77x39mm)

Weight: 9.6oz (271g)
