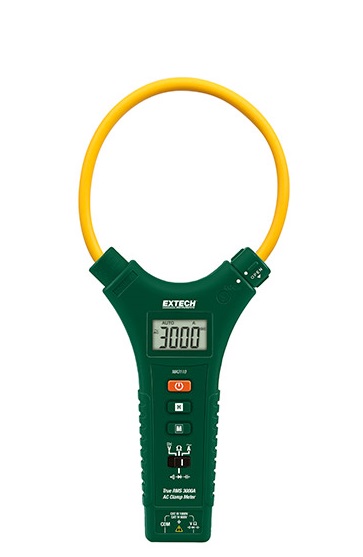

EXTECH MA3110 Clamp Meter (AC 3000A; True RMS)

Specifications:

AC Current

Ranges: 600A, 3000A

Max Resolution: 0.1A, 1A

Basic Accuracy: ±1%

AC Voltage

Ranges: 6V, 60V, 600V, 1000V

Max Resolution: 0.001V

Basic Accuracy: ±1%

DC Voltage

Ranges: 6V, 60V, 600V, 1000V

Max Resolution: 0.001V

Basic Accuracy: ±0.8%

Resistance

Ranges: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ

Max Resolution: 0.1Ω

Basic Accuracy: ±1.5%

Capacitance

Ranges: 6nF, 60nF, 600nF, 6μF, 60μF, 600μF

Max Resolution: 0.001nF

Basic Accuracy: ±3%

Diode/Continuity: Yes

Dimensions: 11.4 x 5.3 x 1.1" (290 x 135 x 27.8mm)

Weight:7.3oz (208g) w/o batteries
