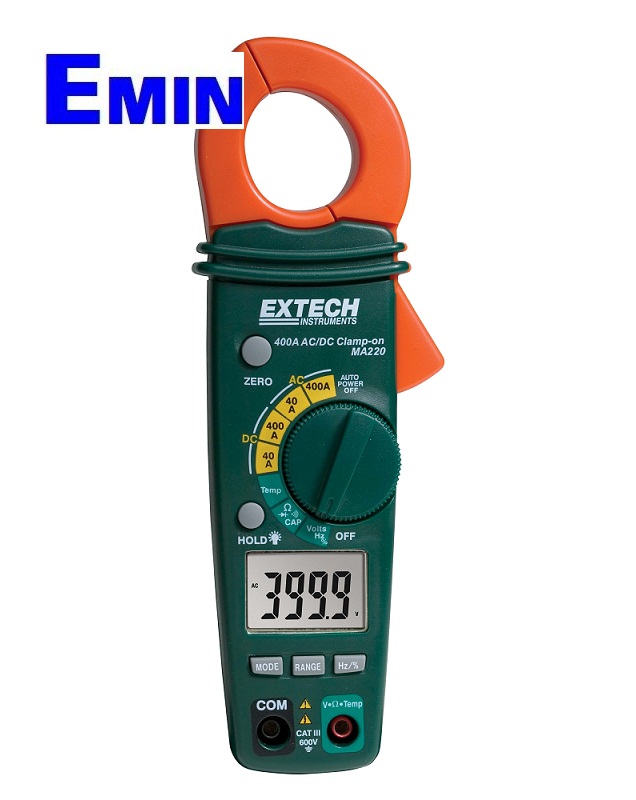

Extech MA220 400A AC/DC Clamp Meter

AC Current: 40, 400A (0.01A)

DC Current: 40, 400A (0.01A)

Basic accuracy: AC: ±3%, DC: ±2.5%

DC Voltage: 400mV, 4V, 40V, 400V, 600V (0.1mV)

AC Voltage: 400mV, 4V, 40V, 400V, 600V (0.1mV)

Basic accuracy: AC: 2%, DC: ±1.5%

Resistance (Ω): 400, 4k, 40k, 400k, 4M, 40MΩ (0.1Ω)

Capacitance:40nF, 400nF, 4μF, 40μF, 100μF (0.01nF)

Frequency: 5Hz, 50Hz, 500Hz, 5kHz, 150kHz (0.001Hz)

Temperature:-58 to 1830°F (-50 to 1000°C) (1°)

Duty Cycle: 0.5 to 99.0% (0.1%)

Continuity: Beeper ≤30Ω

Dims/Wt: 7.9x2x1.4" (200x50x35mm)/ 7oz (200g)

Complete with test leads, case, and two AAA batteries, general purpose Type K bead wire temperature probe

Manufaturer: Extech USA
