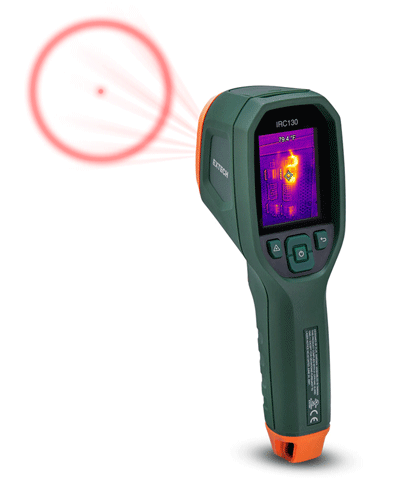

EXTECH IRC130 Camera nhiệt hồng ngoại

Specifications:

Temperature range: -13 to 1202°F (-25 to 650°C)

Basic accuracy:±1% of reading or ±1°C (2°F), whichever is greater

Image storage capacity:50,000 JPEG images (with spot temperature metadata tag)

Emissivity:0.10 to 0.99 (adjustable) and 3 presets

Response time:150 ms

IR Resolution:80 x 60 (4800 pixels)

Digital Camera Resolution:2 MP (megapixels)

Thermal Sensitivity /NETD:< 70 mK

Field of View (FOV):51° x 66 (H x W)°

Minimum focus distance:0.3 m (0.89 ft.)

Distance to Target:30:1

Dual range operation:Range 1: < 752°F (400°C); Range 2: > 752°F (400°C) - For Range 2, the high temperature lever must be engaged

Focus:Fixed

Image frequency:8.7 Hz

Focal plane array/Spectral response range:Uncooled microbolometer/7.5 ~ 14 μm

Display resolution:320 x 240 pixels

Screen size:2.4" (61 mm) - portrait

Viewing angle:80°

Display type:TFT technology

Image modes:Visual and Visual/Thermal MSX (Multi-Spectral Dynamic) images

Color display palettes:Iron, Rainbow, White-hot, Black-hot, Arctic, and Lava

Image gallery:Yes

IP rating:IP54 (IEC 60529)

Drop tested:~6.5 ft (2 m)

Accessory mount:UNC 1/4"-20

Power:Internal rechargeable battery (3.6 V Lithium Ion)

Dimensions/Weight:8.3 x 2.5 x 3.2" (210 x 64 x 81 mm)/13.9 oz (394 g)
