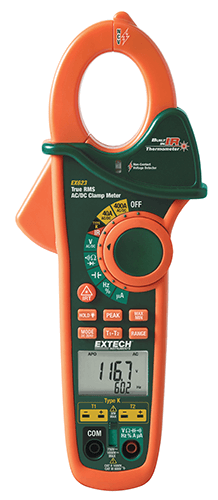

EXTECH EX623 clamp MetersDual Input AC/DC Clamp Meter + NCV + IR Thermomete (400A)

Temperature (IR): -58 to 518°F (-50 to 270°C)

AC Current :400.0A

DC Current: 400.0A

Max resolution: 10mA

Basic ACA accuracy: ±1.5%

AC/DC Voltage (Max Res.): 600V (0.1mV)/600V (0.01mV)

DC μA Current: 4000μA (0.01μA)

Resistance (Max Res.): 40.000MΩ (0.01Ω)

Capacitance (Max Res.): 10pF to 40,000μF (0.01nF)

Frequency (Max Res.): 40MHz (0.001Hz)

Temperature: (-50 to 1000°C)

Diode Test : < 2.8V

Duty Cycle 0.5 to 99.0%

Dimentions: 229x80x49mm

Weight: 303g

Complete with CAT III-600V, double molded test leads, 9V battery, two general purpose
Type K bead wire probes and case

Datasheet

Manual
