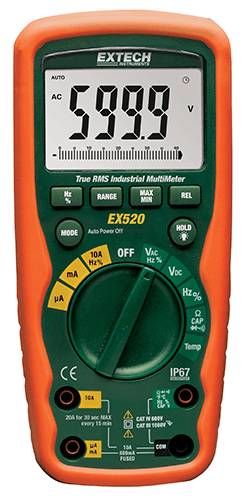

EXTECH EX520 Function Heavy Duty True RMS Industrial MultiMeter

Display Counts:6000 count

Averaging/True RMS: True RMS

Basic Accuracy: 0.09%

DC/AC Voltage: 0.01mV to 1000VD, 0.01mV to 1000VAC

DC/AC Current: 0.01μA to 20A

Resistance: 0.01Ωto 40MΩ

Capacitance: 0.001nF to 100μF

Frequency (electrical): 40Hz to 400Hz

Frequency (electronic): 0.001Hz to 40MHz

Temperature: -45 to 750°C

Duty Cycle: 0.1 to 99.90%

Diode/Continuity: yes

Dimensions: 184x83x57mm

Weight:12.3oz (349g)

Complete with double molded test leads, magnetic hanging strap, Type K bead wire
temperature probe , carrying case, and one 9V battery
