Designed for Laboratory use but excellent for bench technicians
, engineers, and educational facilities
60V/10A output
Maximum current can be limited to 5A using the auxiliary output
on the front panel (10A main output is on the back panel)
Three user-defined Voltage and Current presets
Dual action rotary encoder control with push knob for fine and coarse tuning
Remote control for Output VoltageCurrent and On/Off
Complete with power cords
Specifications
+ Output Voltage 1 to 60V
+ Output Current 1 to 10A
+ Basic Accuracy ±(0.2%+3 digits)
+ Load Voltage Regulation 50mV
+ Line Voltage Regulation 20mV
+ Load Current Regulation 100mA
+ Line Current regulation 50mA
+ Ripple and Noise ≤5m Vrms, ≤100m Vp-p

Power Suppy: 220VAC
+ Dimensions/ Weight 7.9 x 3.5 x 8.5” (200 x 90 x 215mm)/ 5.7lbs (2.6kgs)

Catalog

Manual

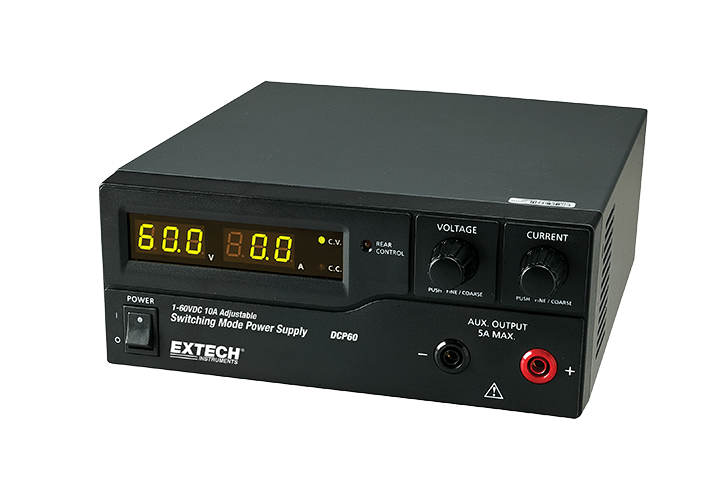

DCP60-220: 600W Switching Power Supply (220V)

High Efficiency Switching Power Supply with Low Ripple and Noise

Features:

• Designed for Laboratory use but excellent for bench technicians, engineers, and educational facilities
• 60V/10A output
• Maximum current can be limited to 5A using the auxiliary output on the front panel (10A main output is
• on the back panel)
• Three user-defined Voltage and Current presets
• Dual action rotary encoder control with push knob for fine and coarse tuning
• Remote control for Output VoltageCurrent and On/Off
• Complete with power cords
