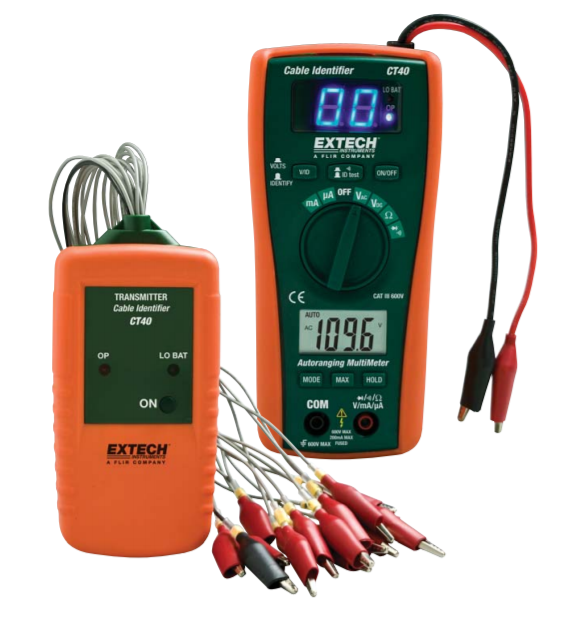

EXTECH CT40 Cable Identifier/Tester Kit

Mutimeter

Display Counts: 2,000 count

Basic Accuracy: 1.0%

DC/AC Voltage: 0.1mV to 600VDC /1mV to 600VAC

DC/AC Current: 0.1μA to 200mA

Resistance: 0.1Ωto 20MΩ

Diode/Continuity: Yes

Dimensions: 6.3x2.9x1.7"(162x74.5x44mm)

Weight: 10.8oz (308g)

Transmitter

Display: Two red LED lamps

Test Leads: 17 alligator clips (16 red and 1 black (ground))

Cable resistance: 30kΩ max

Receiver

Display: Two digit blue LED display

Test Leads: 2 alligator clips (1 red and 1 black)

Complete with 16-line Transmitter, MultiMeter/ Receiver, two 9V batteries, pouch case, and 2 AAA batteries
