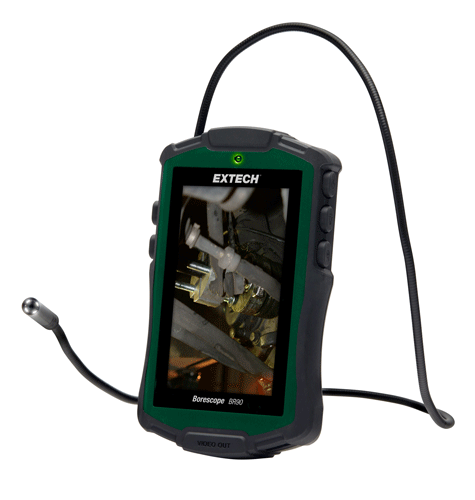

EXTECH BR90 Video endoscope

Specifications:

Camera resolution:640 x 480 pixels

Camera view angle:50°

Camera focus distance from object:~0.2 to 0.3" (~5 to 8 mm)

Camera minimum bend radius:1" (25 mm)

Camera dimensions:Shaft: 0.32" (8 mm) diameter

Cable dimensions:0.2" (4.4 mm) diameter/ 2.5 ft (77 cm) long

LCD screen type:4.3" (109 mm) color TFT display

Monitor resolution:640 x 480 pixels

Image zoom ratio:1.5x and 2x

Video format:NTSC

Monitor dimensions:7.1 x 3.5 x 1.4" (180 x 89 x 36 mm)

Weight:11.5 oz (325 g)
