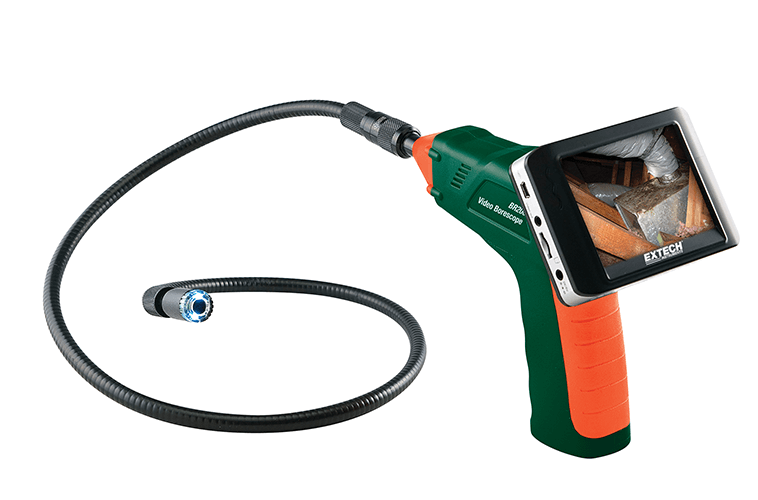

EXTECH BR200 Video Borescope/Wireless Inspection Camera

Camera

- Pixels: 712 x 486 (NTSC)

- Transmission Frequency 2.4GHz

- Transmission Range 32ft (10m) unobstructed view

- Viewing direction Viewing Angle 50°

- Focus distance from object 5.9" to 9.8" (15 to 25cm)

- Shaft diameter 0.66" (17mm)

- Working length 39" (1m)

- Minimum bend radius 2.36" (60mm)

- Handle Dimensions 7.3 x 5.7 x 1.6" (186 x 145 x 41mm)

- Weight 18.7oz (530g)

Monitor

- LCD Screen Type 3.5" TFT

- Pixels 320 x 240

- Video Output Level 0.9 to 1.3V@75Ω

- Frame Rate 10, 15, 20, 25, 30FPS

- Video Resolution 960 x 240 (avi format)

- Image Resolution 640x 480 (jpeg format)

- Monitor Dimensions 3.9 x 2.7 x 1" (100 x 70 x 25mm)

- Operating/Charge Time 1.5 hours/3 hours

- Weight 4.9oz (140g)

Complete with 4AA batteries, rechargeable display battery, microSD card with adaptor, USB and video cable, extension tools, 100-240V AC adaptor, stand and case
