Extech BR150 Video Borescope Inspection Camera

THAY THẾ BẰNG BR90

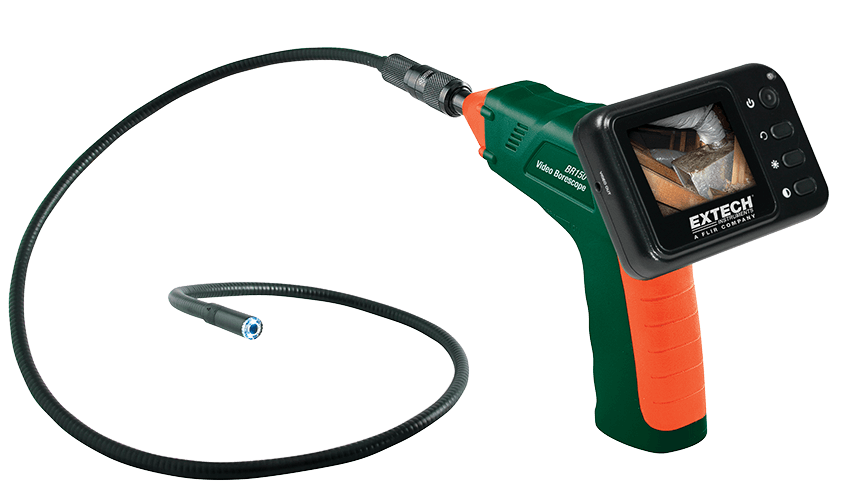

Extech Borescope features a 2.4" color
monitor with video output for viewing
on any monitor and a waterproof
9mm camera with bright LED lights.
Ideal Applications:
- Home inspection: Inspect in walls for mold, insect
infestation, electrical wire or water pipe location
- HVAC: Inspect inside ducts/vents
- Automotive: View inside or around engines/transmissions
- Industrial: Inspect weld integrity, process equipment, and gears
- And many more applications!
Specifications
+ Camera Viewing direction Viewing Angle 45°
+ Focus distance from object 5.9" to 9.8" (15 to 25cm)
+ Camera Shaft diameter / Cable Length 0.35" (9mm) diameter / 39” (1m) cable
+ Minimum bend radius 2.36" (60mm)
+ LCD Screen Type / Pixels 2.4" TFT / 480 x 234 pixels
+ Monitor Operating 1.5 hours
+ Dimensions/Weight Handle: 7.3x5.7x1.6” (186x145x41mm)/18.7oz (530g); Monitor: 3.9x2.8x1.2” (100x70x30mm)/4.9oz (140g)
