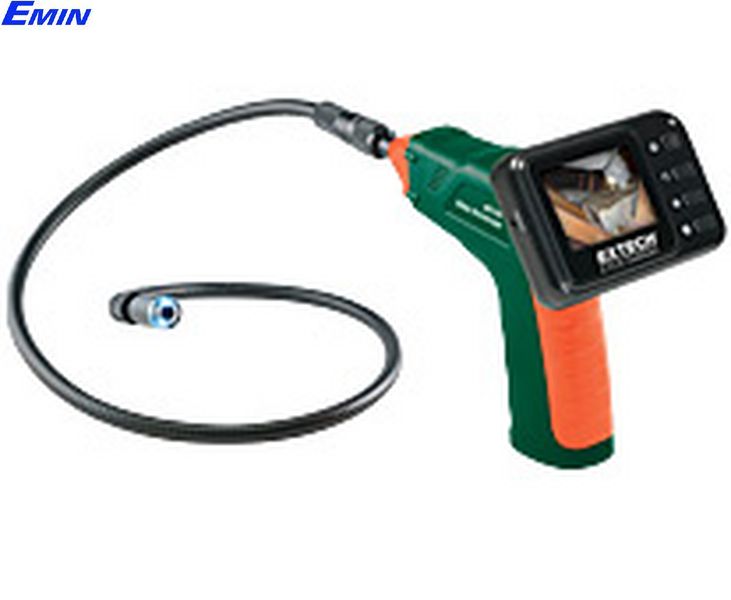

Extech BR100 Video Borescope Inspection Camera

Camera

- Viewing direction Viewing Angle 50°

- Focus distance from object 5.9" to 9.8" (15 to 25cm)

- Shaft diameter 0.67" (17mm)

- Working length 39" (1m)

- Minimum bend radius 2.36" (60mm)

- Handle Dimensions 7.3 x 5.7 x 1.6" (186 x 145 x 41mm)

- Weight 18.7oz (530g)

Monitor

- LCD Screen Type 2.4" TFT

- Pixels 480 x 234

- Monitor Dimensions 3.9 x 2.7 x 1.8" (100 x 70 x 30mm)

- Operating 1.5 hours

- Weight 4.9oz (140g)

Manufacturer:Extech USA
Warranty: 12months

Option:

BR-9CAM............Replacement 9mm Borescope Camera Head with 1m Cable

BR-9CAM-2M.....Replacement 9mm Borescope Camera Head with 2m Cable

BR-9CAM-5M.....Replacement 9mm Borescope Camera Head with 5m Cable

BR-17CAM..........Replacement 17mm Borescope Camera Head with 1m Cable

BR-17CAM-2M...Replacement 17mm Borescope Camera Head with 2m Cable

BR-17CAM-5M...Replacement 17mm Borescope Camera Head with 5m Cable

Datasheet

Manual
