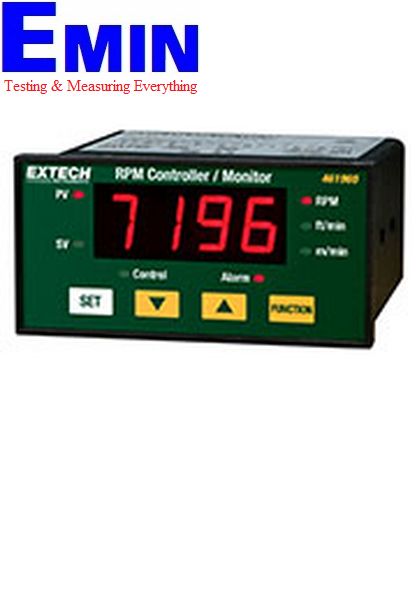

Extech 461960 Panel Mount Controller/Monitor

Input Signal: Pulse

Time Base: Quartz Crystal

Range: 10 to 99,999RPM

0.2 to 32,805ft/min

0.05 to 9,999m/min

Resolution: 0.1RPM, 0.1ft/min, 0.01m/min

Accuracy: ±(0.1% + 1 digit)

Sampling Time: 1 second (approx)

Relay Outputs Control: (1ACA/250ACV; 1DCA/24DCV max)

High/Low Alarm: (1ACA/250ACV; 1DCA/24DCV max)

Sensor Power Supply: 12VDC, 50mA max

Data Output: RS-232 serial interface

Power: 90 to 260VAC, 50/60Hz

Dimensions: 3.8x1.9x4.2" (96x48x107mm)

Weight: 13.5oz (384g)

Manufaturer: Extech USA

Option

RS-232 interface with software

proximity and photo sensors

Discontinued

Datasheet

Manual
