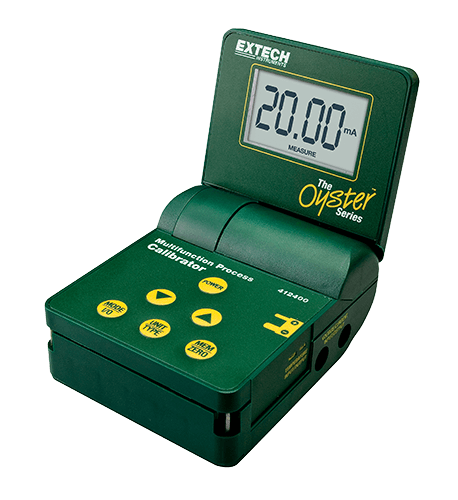

EXTECH 412400 Multifunction Process Calibrator

DC Source

Range / Accuracy

Current: 0 to 24mA, -25% to +125% / ±(0.075% + 1 digit) or ± 3 digits

Voltage: 0 to 10V / ±(0.075% + 1 digit) or ± 3 digits

Type J: -58 to 1830°F (-50 to 1000°C) / ±(0.15% + 1.8°F or 1°C)

Type K: -58 to 2498°F (-50 to 1370°C) / ±(0.15% + 1.8°F or 1°C)

Type T: -184 to 752°F (-120 to 400°C) / ±(0.15% + 1.8°F or 1°C)

Loop Power: 24V / ±(10μV ± 1 digit)

Max. Load: 1000 @ 24mA

DC Measure

Range / Accuracy

Current: 0 to 50mA, -25% to +230% / ±(0.075% + 1 digit) or ± 3 digits

Voltage: 0 to 20V / ±(0.075% + 1 digit) or ± 3 digits

Type J: -58 to 1830°F (-50 to 1000°C) / ±(0.15% + 1.8°F or 1°C)

Type K: -58 to 2498°F (-50 to 1370°C) / ±(0.15% + 1.8°F or 1°C)

Type T: -184 to 752°F (-120 to 400°C) / ±(0.15% + 1.8°F or 1°C)

Dimensions/Weight 3.8 x 4.7 x 2.0" (96 x 118 x 45mm)/12oz (340g)

Complete with six AA batteries and calibration cable with spade lug terminals
