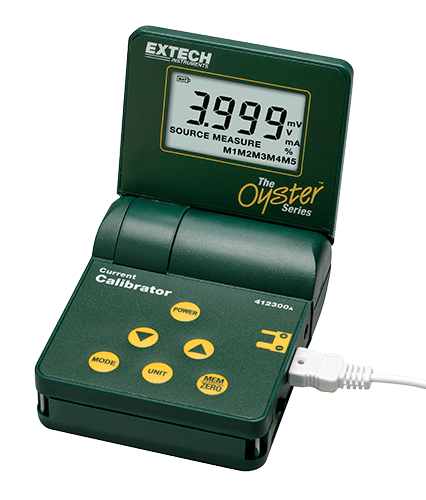

EXTECH 412300A Current Calibrator/Meter

Operating Modes

Source Output 0 to 24mA current for loads up to 1000 ohms

Measure 0 to 50mA current signal

Power/Measure Provides power (24VDC) to loop & measures current

Input/Output Ranges and Display Resolution

-25.0 to 125.0% (representing 0 to 24mA) 0.1%

0 to 19.99mA / 0.01mA

0 to 24.0mA / 0.1mA

Accuracy 0.075% ±1 digit

Power 9V battery or AC adaptor

Dims/Wt 3.8 x 4.2 x 1.8" (96 x 108 x 45mm) folded/ 12oz (340g)

Complete with 9V battery, calibration cable with spade lug terminals, carrying case, and

100V-240V AC Universal Adaptor (50/60Hz)
